Nauticam 专业数位录影系统套装 for ARRI ALEXA 35 (包含 N200 250mm 玻璃广角镜头罩, N200 延伸环 100mm)
[说明]

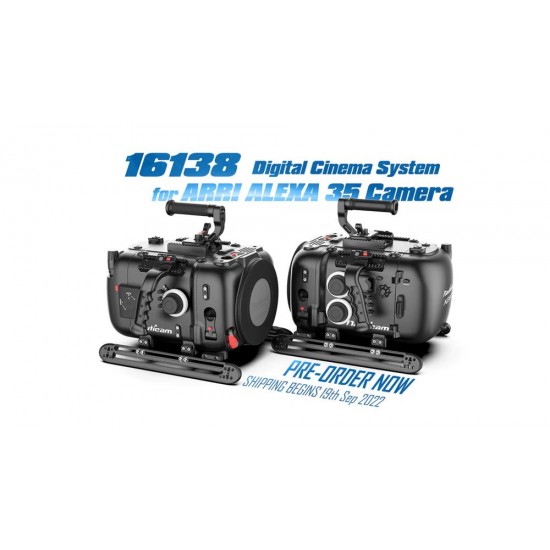

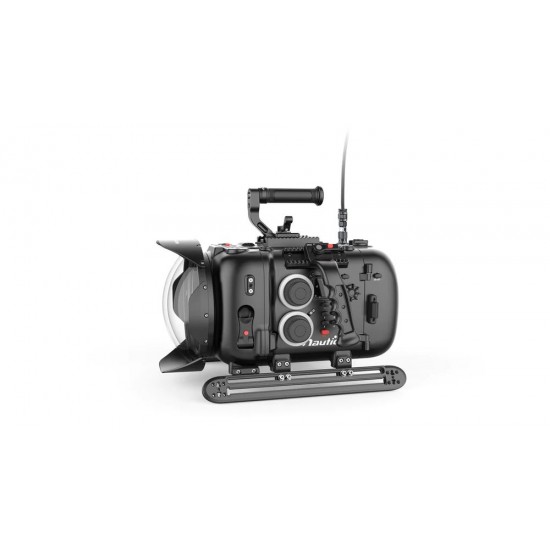

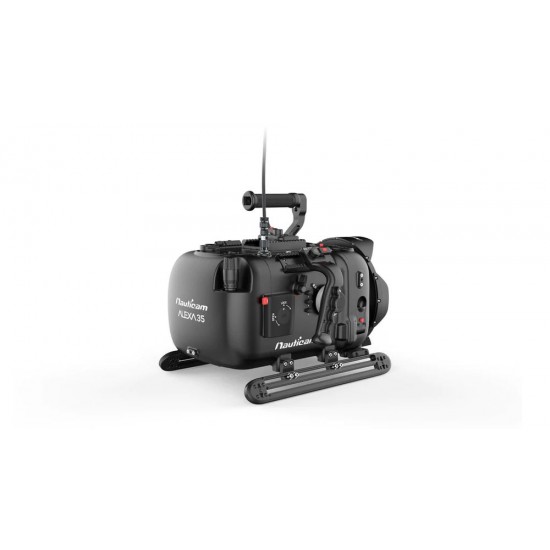

Nauticam 专业数位录影系统套装 for ARRI ALEXA 35
(套装包含 N200 250mm 玻璃广角镜头罩, N200 延伸环 100mm)
[特色]
- 安装简便
- 通用镜头控制
- 光学玻璃镜头罩
- 如有任何疑问, 欢迎联络 [email protected]
- 专利镜头罩锁
- 多配件转接座: 1/4-20, 3/8-16, 与 10mm
- 支援多种电池安装
- 支援水下配重调整
- 支援外接荧幕
- 真空漏水侦测系统
[规格]
- 耐水深: 防水壳: 80m 250mm 光学玻璃罩: 45m
- 陆上重量 (单防水壳) 11.3kg
- 水下重量 (包含相机, 镜头, bebob B290 电池与250mm玻璃罩) 6.0kg
- 尺寸 (W x H x D) 310mm x 246mm x 500mm
- 镜头罩系统: N200
[套装包含]
- 16138 防水壳 for ARRI ALEXA 35 Camera
- N200 100mm 延伸环
- N200 250mm 光学玻璃广角镜头罩 (耐水深 45m)
- 3种镜头控制组件
- 真空测漏系统, 双启动真空阀
- 快拆可调整式机顶握把, 左右握把
- 防水壳底部滑轨
- 2x 硬旅行箱
- 工具组与备用O-ring组
[选购外接银幕支援]
*Required accessories for SDI input from camera to 17922S Atomos Ninja V-S:
- 25060 SDI cable in 0.4m length (SDI cable in 0.3m length (for connection from camera to underside of SDI Bulkhead))
- 25058 M16 SDI Bulkhead
- 25061 SDI cable in 0.75m length (for connection between SDI Bulkheads)
SDI OUTPUT
Required accessories for SDI Cable System
- 25058 M16 SDI Bulkhead
- 25060 SDI Cable in 0.4m Length
- 25080 M28-M16 Step Down Adapter

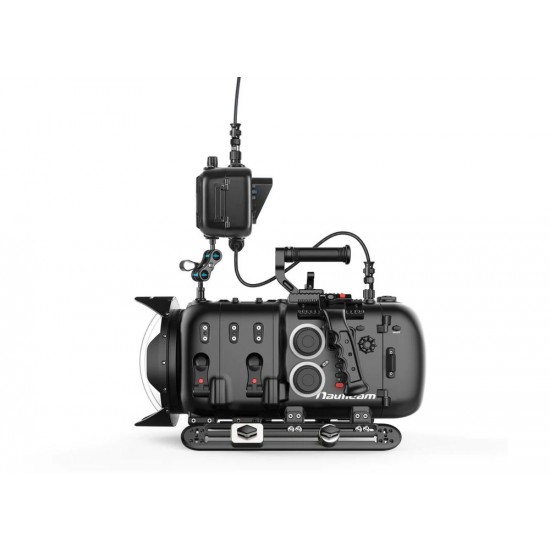

Recommended monitor housing
- 17925S Nauticam NA-503-S Housing for Small HD 503 Ultrabright (SDI Cables and bulkhead are included)
- 17922S Nauticam Atomos Ninja V-S Housing (SDI Cables and Bulkhead are sold separately)
Recommended SDI Surface Cables
- 25064 SDI Surface Monitor Cable in 15m Length
- 25065 SDI Surface Monitor Cable in 45m Length
[选购 N200 镜头罩配件]
- 16401 N200 Macro Port 40 with M67 thread
- 16402 N200 Extension Ring 30
- 16403 N200 Extension Ring 40
- 16404 N200 Extension Ring 50
- 16405 N200 250mm optical glass wide angle port (Depth rating 45m)
- 16406 N200 8.5'' Acrylic Dome Port
- 16407 N200 180mm Optical-Glass Flat Port
- 16408 N200 250mm optical glass wide angle port ( (Deep version, depth rating 100m)
[Surface Control Accessories]
- 16223 LCS Surface Cable for Alexa Mini Housing (to use with WCU-4)
- 16249 LBUS Surface Cable for Hi-5 Hand Unit to use with Nauticam Alexa 35 Housing (30m)
- 16247 Replacement of Internal LBUS Cable (from the Camera to housing bulkhead)
- 16248 Converting Cable for 16223 to use with Hi-5 Hand Unit
- *1. 16247 Internal LBUS Cable is required for existing 16223 to use with WCU-4.
- *2. 16247 and 16248 are required for existing 16223 to use with HI-5 hand unit, or buy the new16249 instead.
- 16255 Nauticam Ethernet Cable for Surface Control of Alexa Mini Housing (incl. Lemo bulkhead with integrated Ethernet Cable and external Duracell cables)
[选购其他配件]
- 16232 0.25kg Trim Weights for 16227 (4pcs)
- 16233 0.5kg Trim Weights for 16227 (4pcs)
- 17959 Housing Mounting ball with 1/4'' screws
- 25221 M10 strobe mounting ball for housing
- 17961 Swivel and Tilt Adjustable Monitor Mount System (*new)
- 25058 M16 SDI Bulkhead
- 25059 SDI Cable Extension Adaptor
- 25060 SDI Cable in 0.3m Length (for connection from camera to SDI bulkhead)
- 25063 SDI Cable in 30m Length (for connection between SDI bulkheads)
- 25064 SDI Surface Monitor Cable in 15m Length
- 25065 SDI Surface Monitor Cable in 45m Length
[使用手册]
- Download
RMB207,499
- 库存: 接单订货
- Model: 16138
- Weight: 11.30kg
- Dimensions: 32.00cm x 24.60cm x 50.00cm
