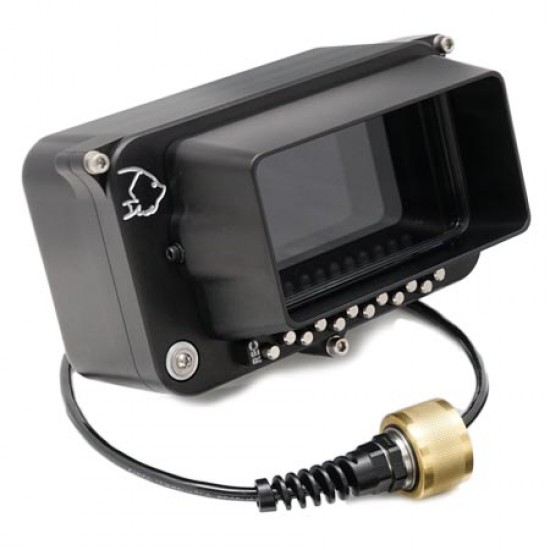

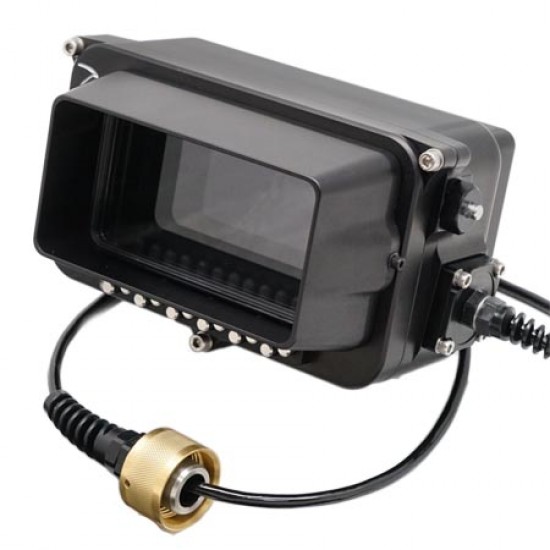

Gates NVS 外接银幕防水壳 (for Atomos NINJA V, SHINOBI)

[说明]

Gates NVS 外接银幕防水壳 (for Atomos NINJA V, SHINOBI, 不包含银幕), Atomos NINJA V 具备 1000 nits 亮度 LCD.  支援显示 4K/60P ProRes RAW 录影.  言延伸对焦/曝光工具. 所有的功能齐聚在这精巧, 中性浮力的外接银幕防水壳.

此防水壳支援 Atomos NINJA V, SHINOBI 与 SHINOBI SDI 银幕, 可进行现场配置修改, 触碰银幕按钮 如有任何疑问, 欢迎联络 [email protected] 可由5银幕下半遮住部份操作, 底座连接可以旋转至任意角度. 银幕为电池驱动或相机驱动 v-lock (SHINOBI SDI only),  NVS可保持流线型, 小型的外壳, 达成最佳的防水性.

Gates NVS 防水壳有坚固的结构, 2年保固与 Gates 良好的客服服务

相容防水壳: ARRI ALEXA MINI / MINI LF    ARRI ALEXA   DEEP WEAPON   SONY Z90

[特色]

• COMPACT SIZE, WIDESCREEN DISPLAY: 5" / 125 mm widescreen display is a bright 1000 nits.
• ATOMOS NINJA V, SHINOBI AND SHINOBI SDI LCD'S: are all supported via field-configurable changes.
• TOUCH SCREEN CONTROLS: are easibly accessible below the shaded LCD.
• 2-YEAR WARRANTY: Only Gates offers a professional 2-year renewable warranty on all housings.
• TILT / SWIVEL BASE MOUNT: adjust NVS for the perfect viewing angle.  A true professional touch.
• NO 'TURTLING": Neutrally buoyant design means no fighting a rig that wants to flip over.

[包含配件]

• NVS External Monitor Housing (NVS)
• NVS Shade
• Dovetail Swivel Mount.
• Spare Kit / Tool Kit
• O-Ring Removal Tool

[规格]

相容性

• ATOMOS NINJA V, SHINOBI and SHINOBI SDI LCD's Widescreen 5 .0 inch / 125 mm color LCD 1920x1080 resolution

控制

• Power
• Touch Screen x12

尺寸

• NVS Dimensional Drawing

输入端子

• HDMI (NINJA V, SHINOBI) and HD-SDI (SHINOBI SDI)
• View all LCD specifications at ATOMOS.com

外壳材质

• 铝合金, Type III 硬阳极电镀
• 不锈钢零件

重量

• Dry: 3.7lbs / 1.7 kg   4.8lbs / 2.2kg with LCD & Battery
• In Water: Slightly positive to slightly negative (battery dependent)

耐水深

• 200 feet / 61 公尺

保固

• 2 年

连接线

• Marine-grade multi conductor cable
• Gates Pass Through connectors

可运作时间

• Variable.  Consult ATOMOS specifications for details.

[使用手册]

• NVS Setup, Use and Care Guide
• NVS Dimensional Drawing
