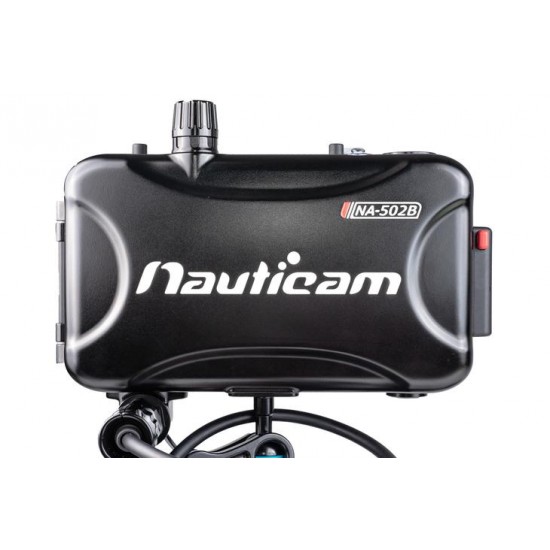

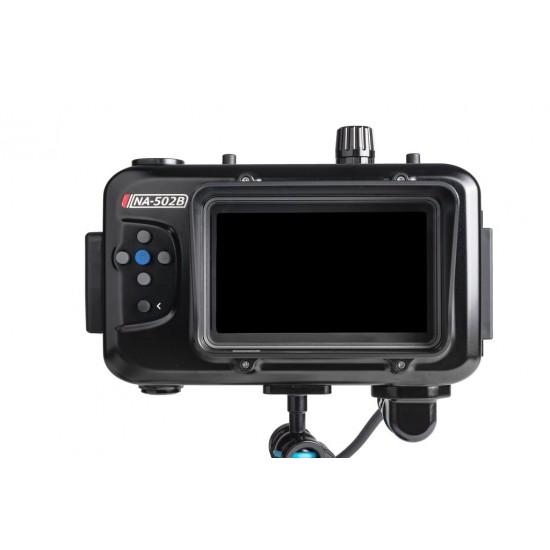

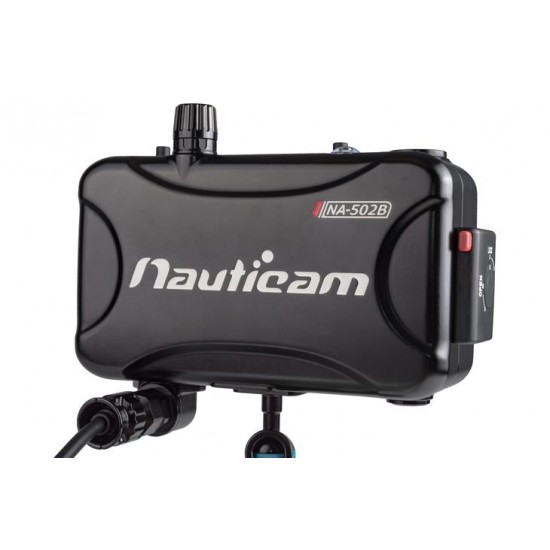

Nauticam NA-502B-H 防水壳 for Small HD 502 5吋 HD 银幕 (支援HDMI 1.4连接)

[说明]

Nauticam NA-502B-H 防水壳 for Small HD 502 5吋 HD 银幕 (支援HDMI 1.4连接)

请注意, 本防水壳产品不包含Small HD 502 银幕, 银幕参考价格为 NT37800

[包装内含]

• 17920 NA-502B Monitor with HDMI 1.4 Input Support
• 17916 Monitor hood for NA-501/502 Housing

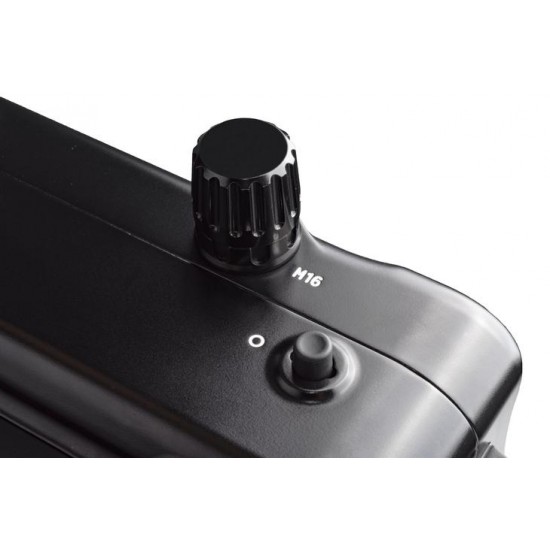

• 25625 M16 Vacuum Valve II (Pushbutton Release)

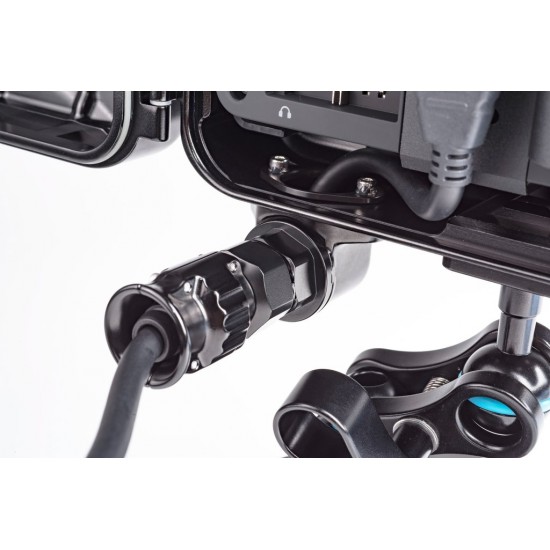

• 25033 Standard HDMI bulkhead with M16 thread
• 25036 HDMI (D-C) cable in 190mm length (for connection from HDMI bulkhead to camera)
• 25046 HDMI (D-D) cable in 200mm length (for connection from HDMI bulkhead to camera)
• 25038 HDMI (A-D) cable in 750mm length (for connection from monitor housing to HDMI bulkhead)
• Mounting ball and M16 extension
• CR2032 Battery

[特色]

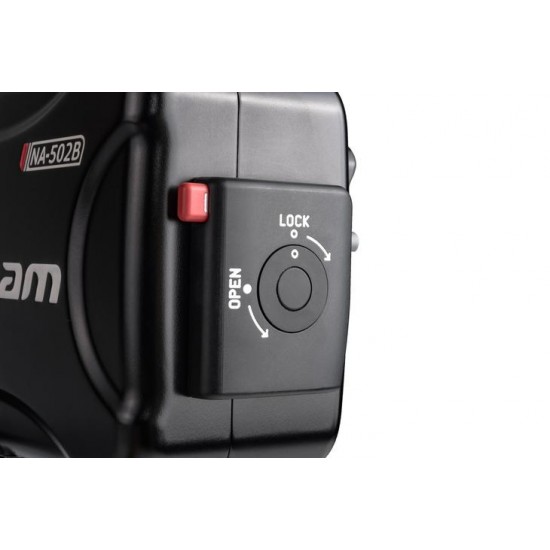

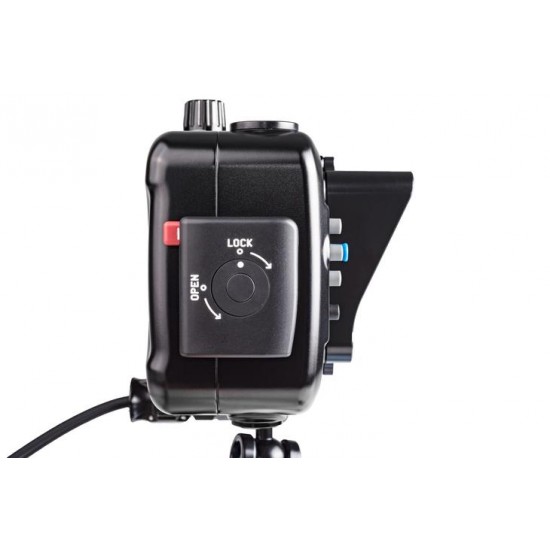

• 旋转防水壳锁

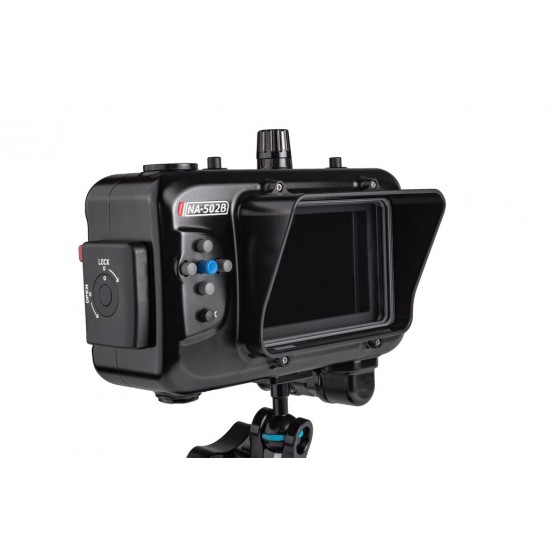

• 银幕遮光罩
• 全功能控制 (支援银幕上下左右键操作)
• L型缆线连接头
• 整合真空测漏系统

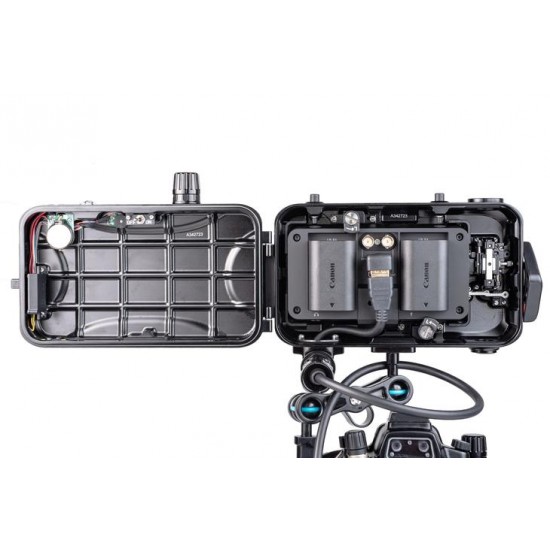

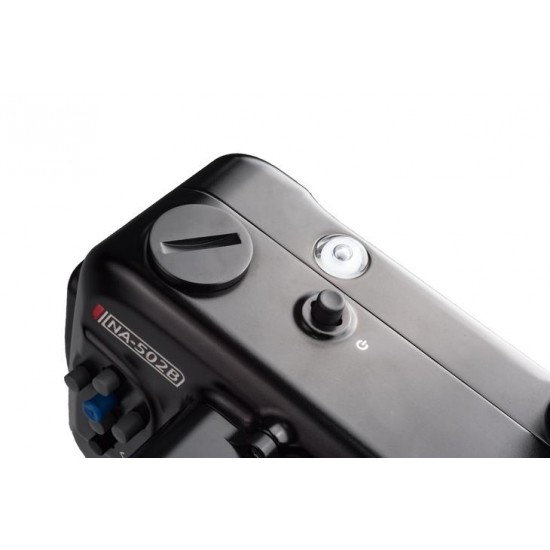

• 更换电池不需要将银幕取出

[选购]

• 25039 HDMI (A-D) cable in 2000mm length (for connection from monitor housing to HDMI bulkhead)
• 25040 HDMI (A-D) cable in 5000mm length (for connection from monitor housing to HDMI bulkhead)
• 90136 Replacement O-ring

[规格]

• 耐水深: 100m
• 重量-陆上: 141kg
• 重量-水下: -20g
• 尺寸: 222mm (W) × 122mm (H) × 77mm (D)

[使用手册]

• Download
• System Map
