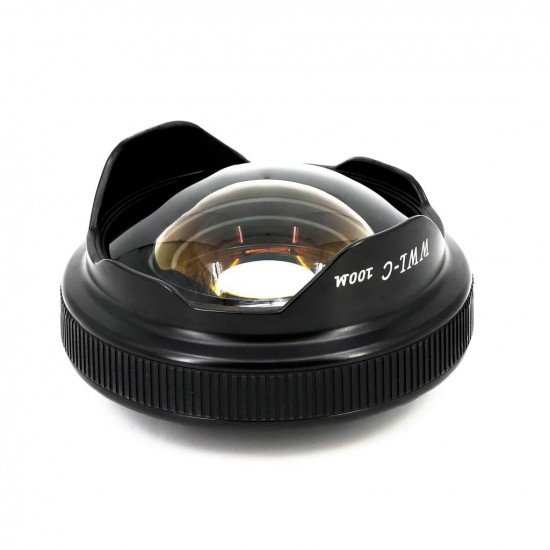

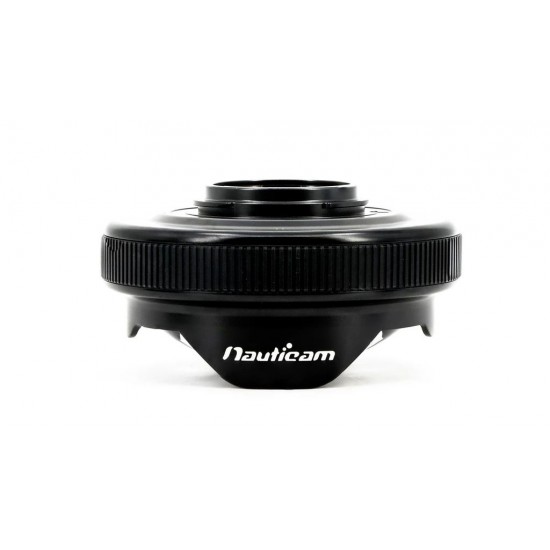

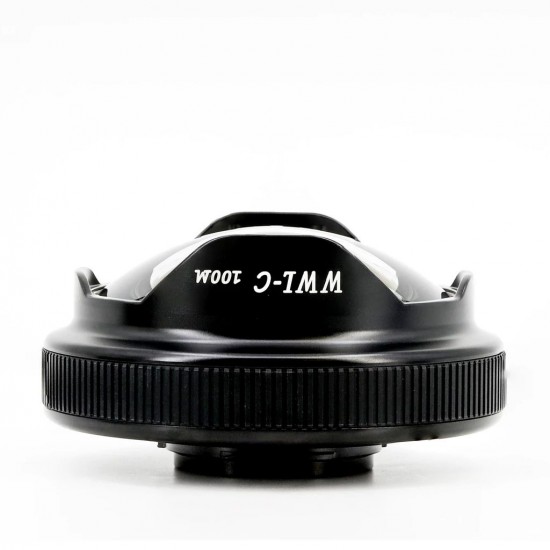

Nauticam 数位相机专用广角镜 (WWL-C) 130 度视角 (相容24mm镜头) (预购中, 预计2020年初上市)

[说明]

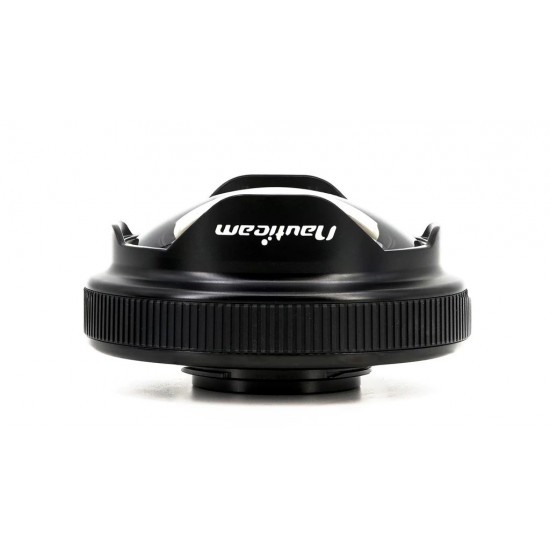

Nauticam 数位相机专用广角镜 (WWL-C) 130 度 FOV (相容24mm镜头)

[包装内含]

• WWL-C

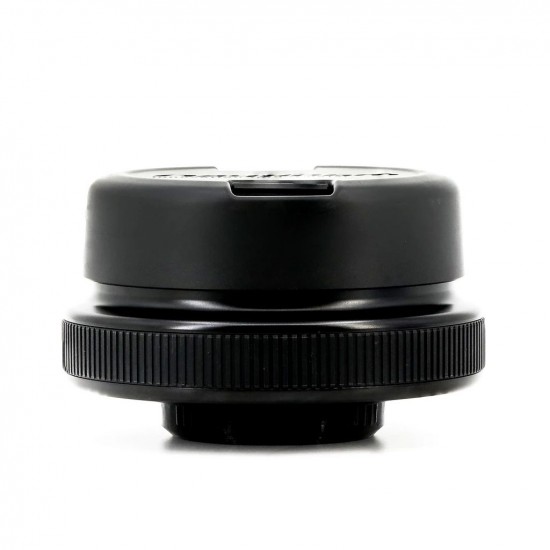

• 镜头前保护套
• 后保护套
• 旅行袋

[防水壳相容表]

防水壳 / 需要对应镜头罩或转接环 / 对应镜头焦段

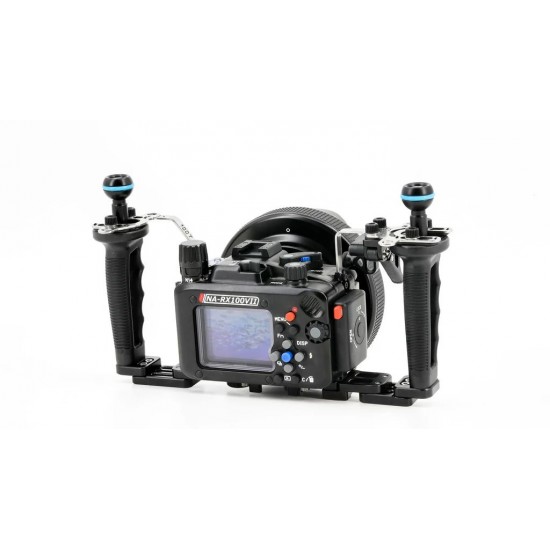

• NA-RX100VII 38705 N50 Short Port 17 with 卡榫式 mount 24-30mm
• NA-RX100VI 38704 N50 Short Port 22 with 卡榫式 mount 24-50mm

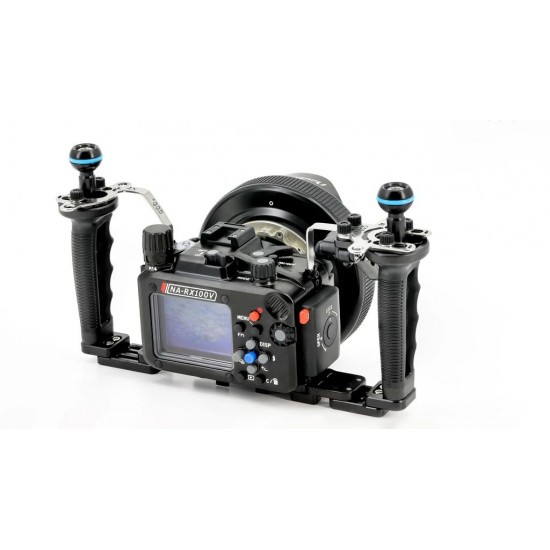

• NA-RX100V 83250 M67 to 卡榫式 Mount II Converter 24-70mm
• NA-RX100IV 83250 M67 to 卡榫式 Mount II Converter 24-70mm
• NA-RX100III 83250 M67 to 卡榫式 Mount II Converter 24-70mm
• NA-G7XIII 38704 N50 Short Port 22 with 卡榫式 mount 24-50mm
• NA-G7XII/G7X 38703 N50 Short Port 25 with 卡榫式 mount 24-50mm
• NA-LX100II 38704 N50 Short Port 22 with 卡榫式 mount 24-30mm
• NA-LX100 38703 N50 Short Port 25 with 卡榫式 mount 24-30mm

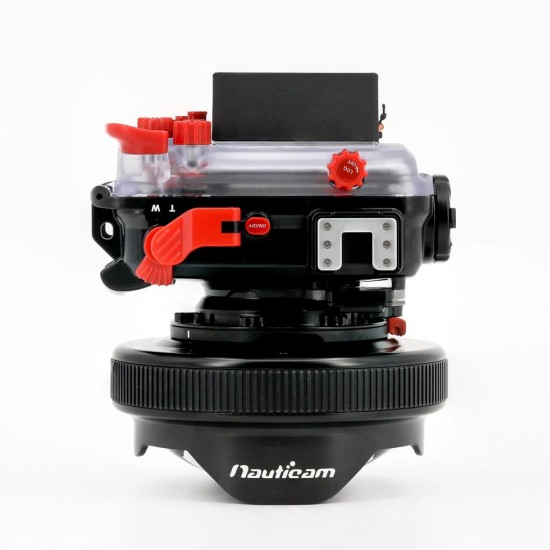

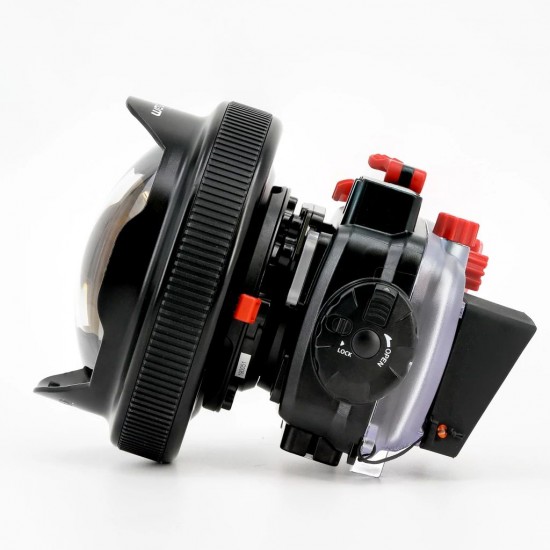

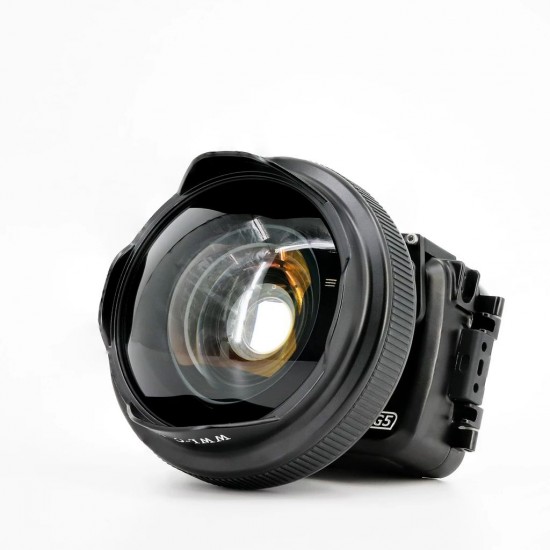

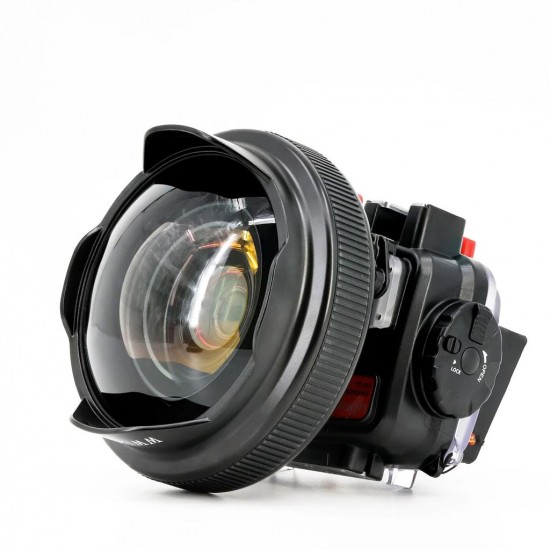

• NA-TG5 83255 卡榫式 Converter for NA-TG5 to use WWL-1 and WWL-C 25-100mm
• Olympus PT-058/59 83256 卡榫式 Mount Converter for Olympus PT-058/59 to use with WWL-1/WWL-C 25-100mm

[BAYONET MOUNT II]

The WWL-C 设计相容于新的 Bayonet Mount II 系统. 但不相容于之前旧款 Bayonet mount 系统配件, 不相容配件列表如下:

• 83213 M67 to Bayonet Mount Converter
• 83215 M77 to Bayonet Mount Converter
• 83222 Bayonet Mount Lens Holder for Arms
• 83223 Bayonet Mount Double Lens Holder for Arms
• 83227 Bayonet Mount Lens Holder for Inon Float Arms
• 72231 Single Bayonet Holder for 70mm Float Arm
• 72232 Double Bayonet Holder for 70mm Float Arm
• 72241 Single Bayonet Holder for 90mm Float Arm
• 72242 Double Bayonet Holder for 90mm Float Arm

以上的产品均已停产, 已由底下配件替代:

• 83250 M67 to Bayonet Converter II
• 83251 M77 to Bayonet Converter II
• 83252 Bayonet Holder for Arms
• 83253 Double Bayonet Holder for Arms
• 83254 Bayonet Lens Holder for Inon Float Arms
• 83255 Bayonet Converter for NA-TG5 (to use with WWL-1/WWL-C)
• 83256 Bayonet Converter for Olympus PT-058/059 (to use with WWL-1/WWL-C
• 72233 Single Bayonet Holder II for 70mm Float Arm
• 72234 Double Bayonet Holder II for 70mm Float Arm
• 72243 Single Bayonet Holder II for 90mm Float Arm
• 72244 Double Bayonet Holder II for 90mm Float Arm

[规格]

• 尺寸: Dia. 156mm x 78mm
• 重量 (air/underwater): 1.05kg / 0.17kg
• 镜头材质: 4 elments
• 镜头镀膜: Anti-reflective on both sides
• 如有任何疑问, 欢迎联络 [email protected]
• Dome镀膜: Multi-layer Broad-band Antireflective Coating
• 对焦距离: Front Element to Infinity
• 最大视角 (水下): 130º for 24mm equivalent lens
• 接座规格: NA 卡榫式 mount
• 耐水深: 100m

[手册 / 相容镜头表]

• Manual
• Compatibility Chart
