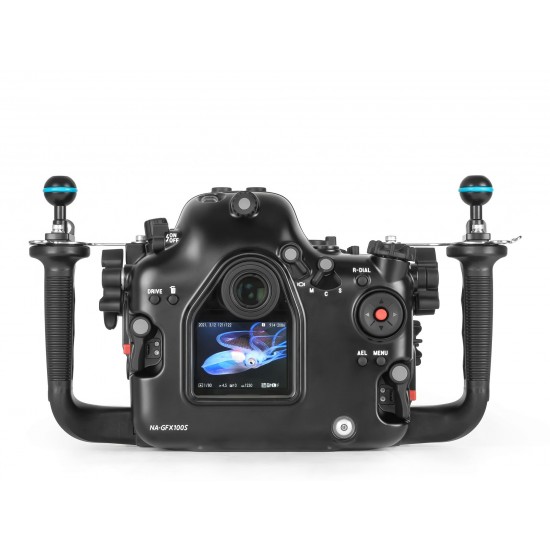

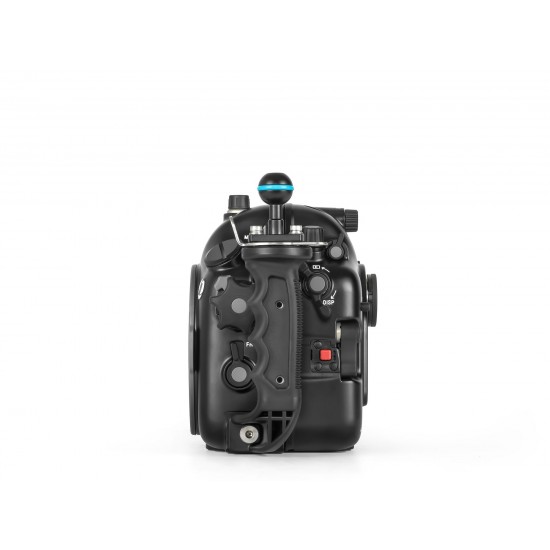

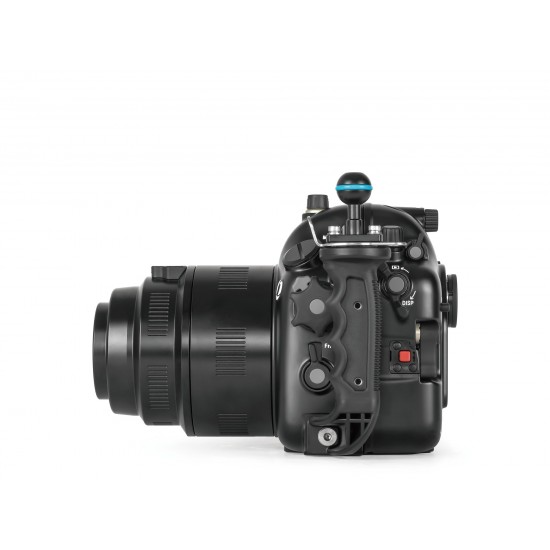

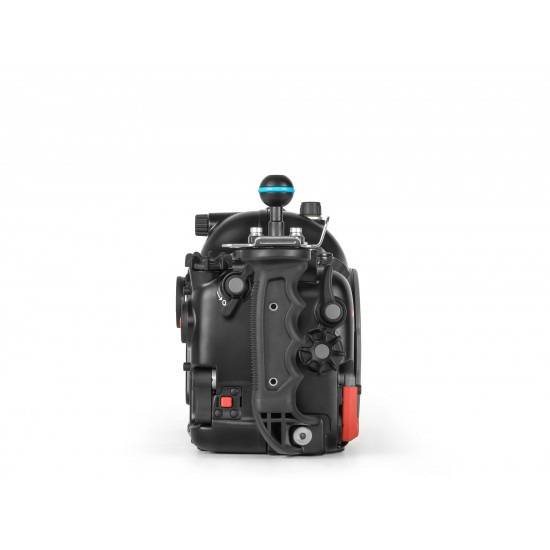

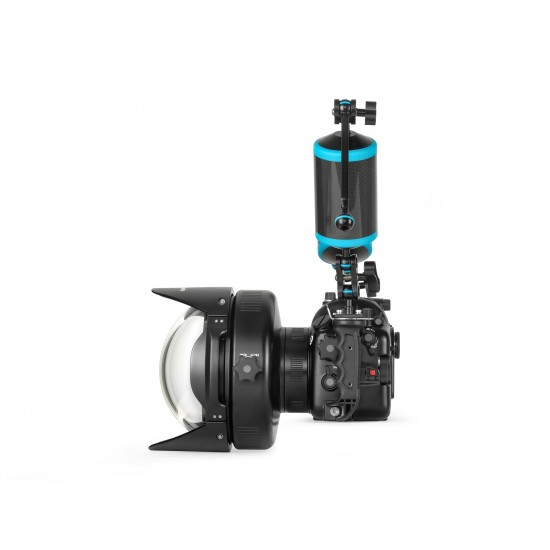

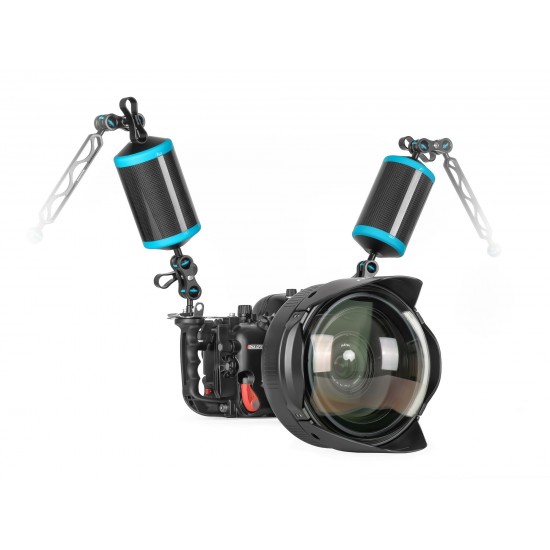

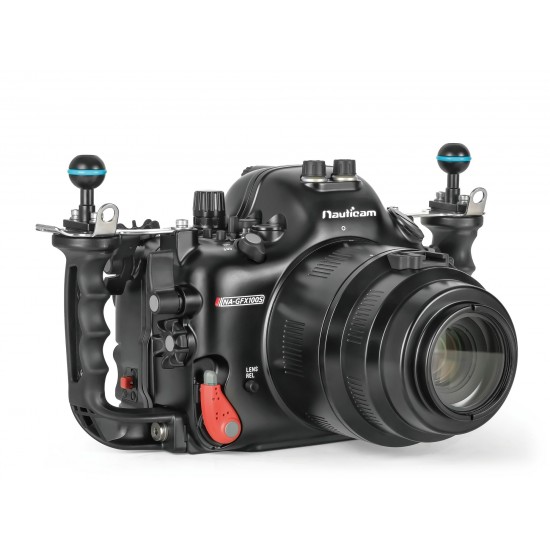

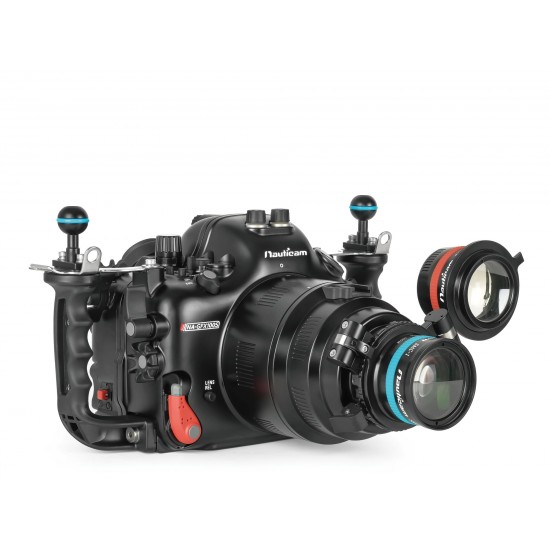

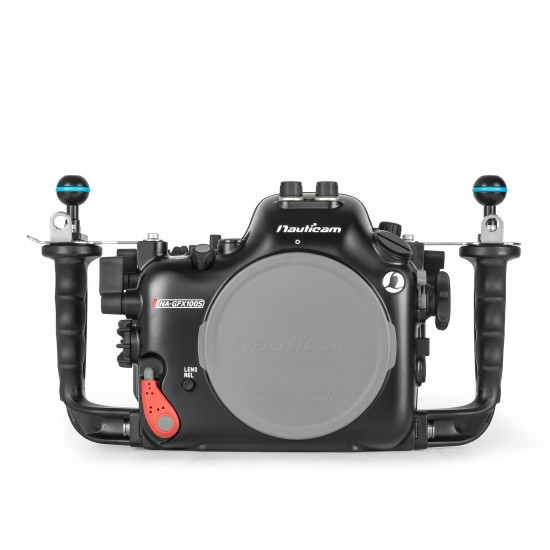

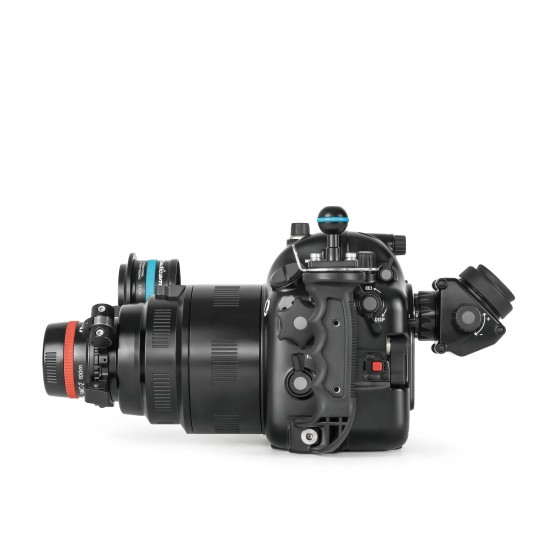

Nauticam NA-GFX100S 防水壳 for Fujifilm GFX 100S 中片幅微单

[说明]

Nauticam NA-GFX100S 防水壳 for Fujifilm GFX 100S 中片幅微单, 镜头罩与TTL触发器为选购

[特色]

• 整合真空测漏系统电路 (真空阀为选购)
• 镜头罩锁
• 防水壳锁
• 如有任何疑问, 欢迎联络 [email protected]
• 整合握把与不锈钢握把片

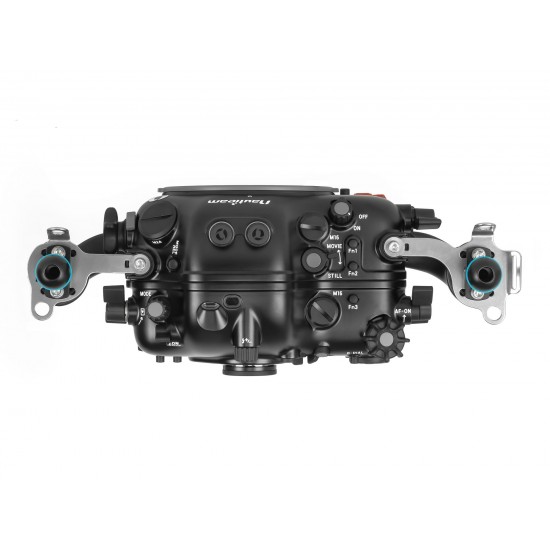

• 双控制拨杆
• 支援 HDMI 连接

[包装内含]

• NA-GFX100S 防水壳
• 90121 主O-ring
• 2x 光纤接座盖子
• 2x 握把与圆球座
• CR2032 电池
• 六角板手
• 使用手册卡
• 携带盒与背带

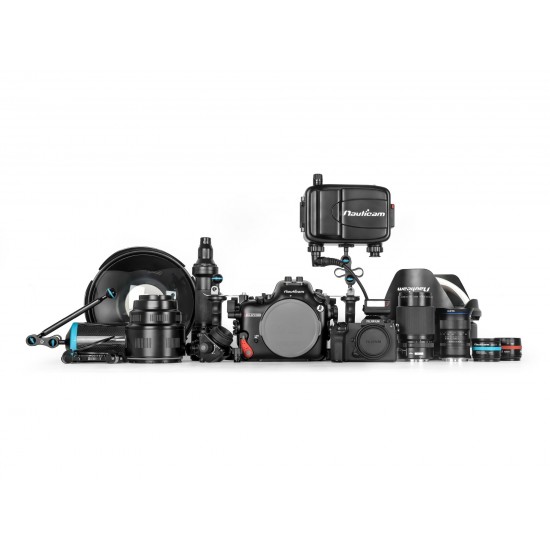

[推荐选购配件]

• 25625 M16 Vacuum Valve II (Pushbutton Release)
• 32201 Nauticam 180˚ straight viewfinder (slightly vignette)
• 32203 Nauticam 45˚ viewfinder (slightly vignette)
• 26216 Universal Optical Fiber Cable
• 28123 Pair of handles - size S (10mm closer to housing)
• 28130 Hand Strap for 28113
• 25056 M14 Nikonos 5-pin bulkhead with universal hotshoe connection

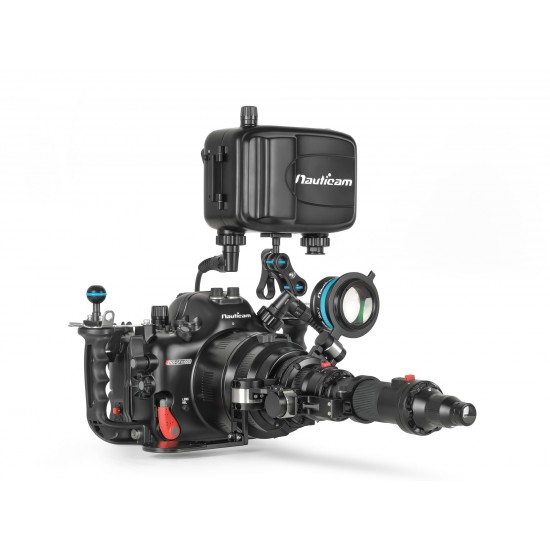

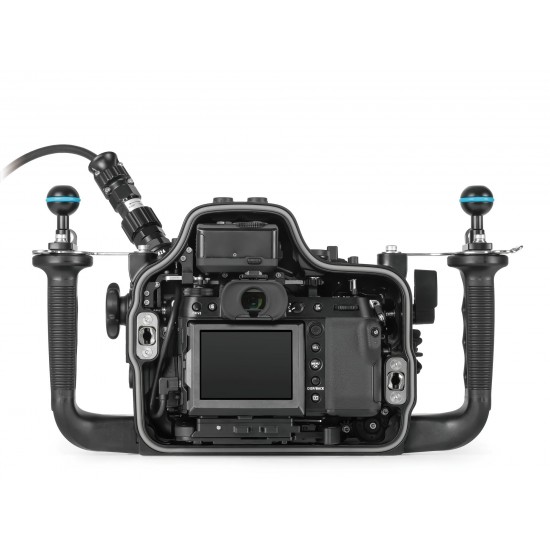

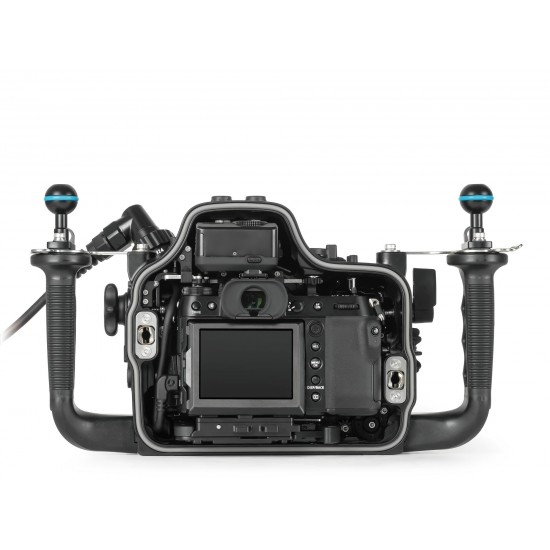

[HDMI 外接银幕连接]

HDMI 2.0 连接配件

• 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
• 25077 M24D1R205-M28A1R170 HDMI 2.0 Cable (for NA-XT3/R5/R6/XT4/GFX100S to use with Ninja V housing), compatible from A467086 onwards

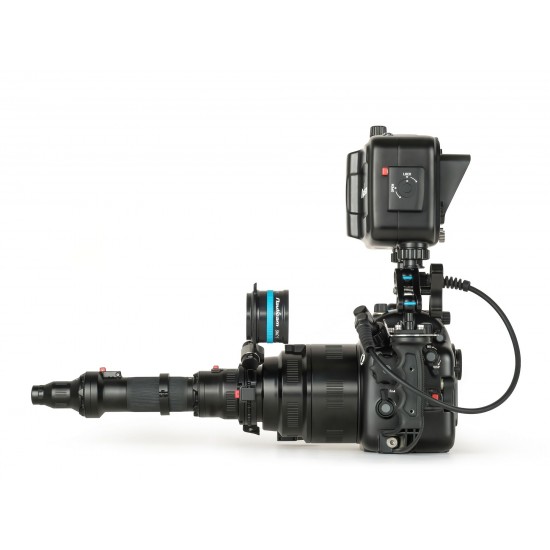

银幕防水壳

• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
• 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

HDMI 1.4 连接配件

• 25033 Standard HDMI bulkhead with M16 thread*
• 25081 M24-M16 Step Down Adaptor
• 25076 HDMI (D-D) Cable in 200mm Length for NA-XT2/XH1/A6400 (for internal connection from HDMI bulkhead to camera)

*25033 在银幕防水壳内有包含

银幕防水壳

• 17920 NA-502B-H Housing for SmallHD 502 Bright Monitor
• 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2" 4K HDMI Monitor with HDMI 1.4 input

[规格]

• 尺寸: 355mm(W) x 190mm(H) x 142mm(D)
• 陆上重量: 3.23kg
• 水下重量: 0.05kg (incl camera and battery)
• 耐水深: 100m
• 镜头罩规格: N120
• TTL闪灯触发器规格: Fujifilm EF-X20 Flash Unit (选购)

[说明书]

• Download
