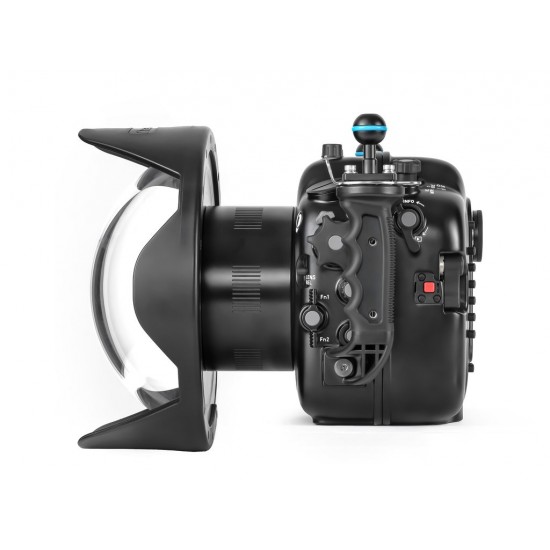

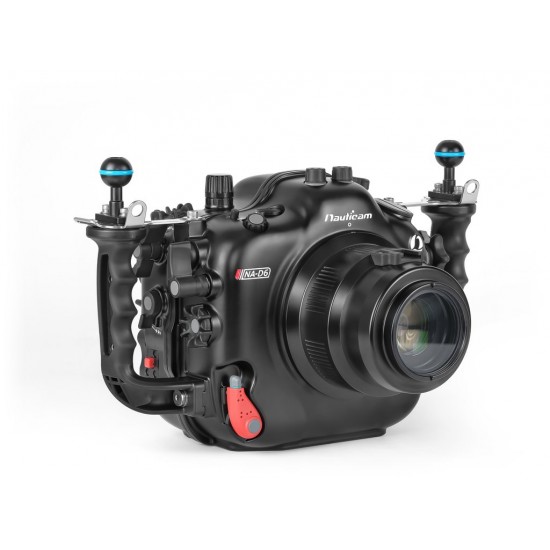

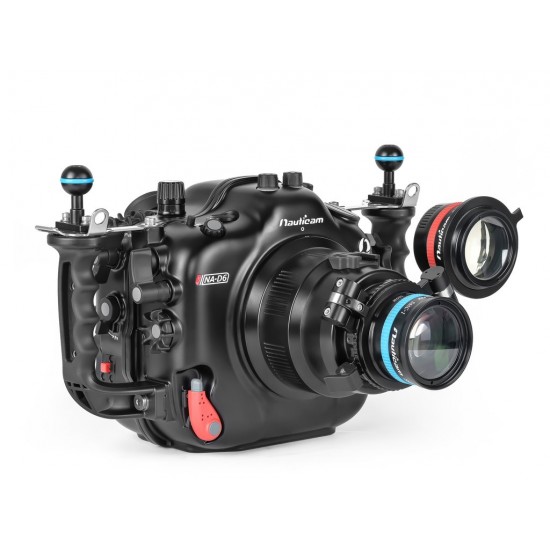

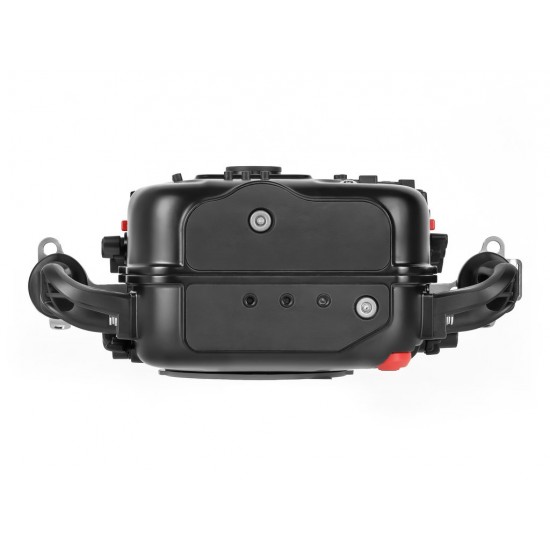

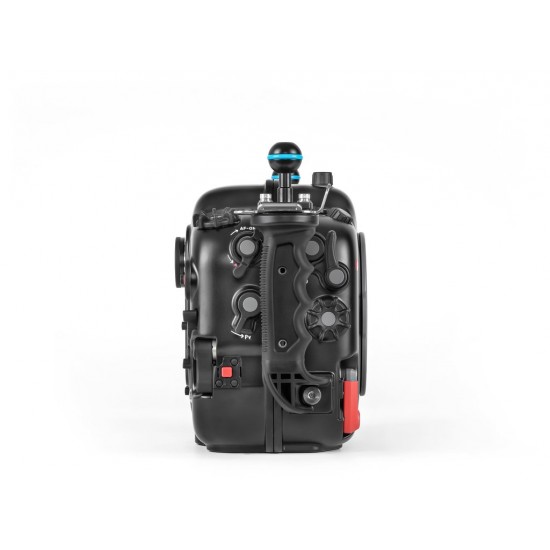

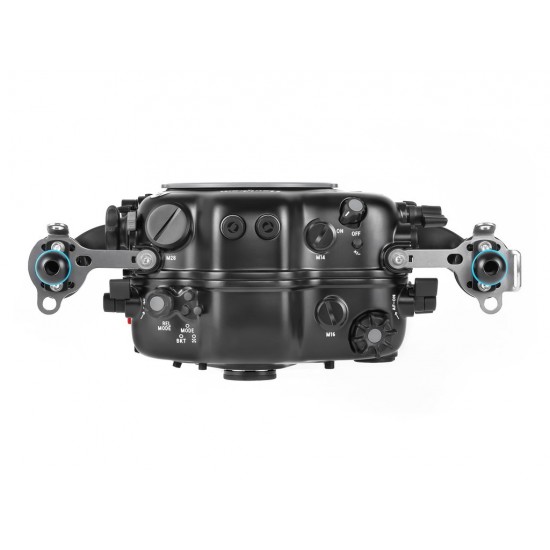

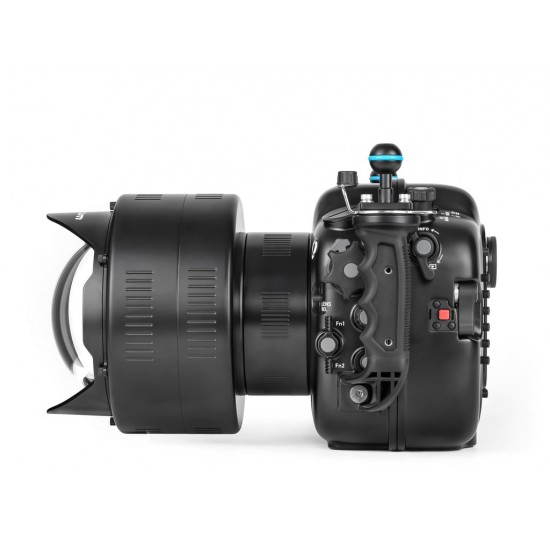

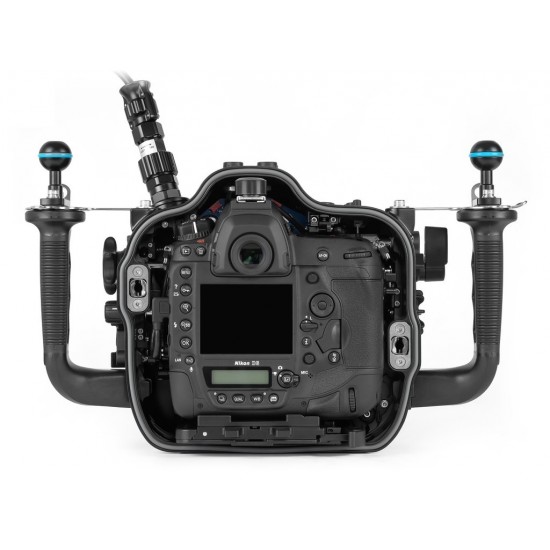

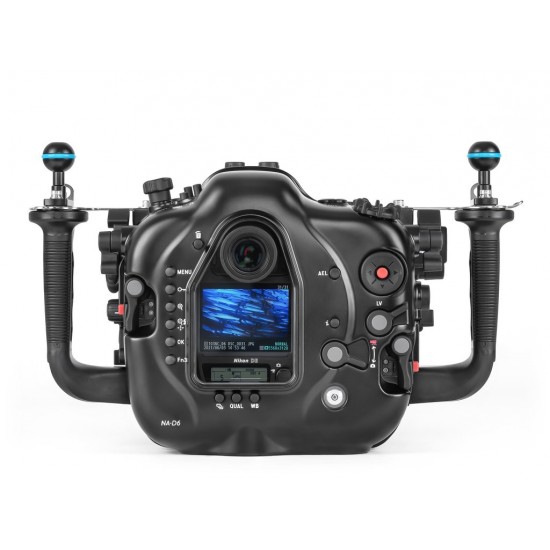

Nauticam NA-D6 防水壳 for Nikon D6

[说明]

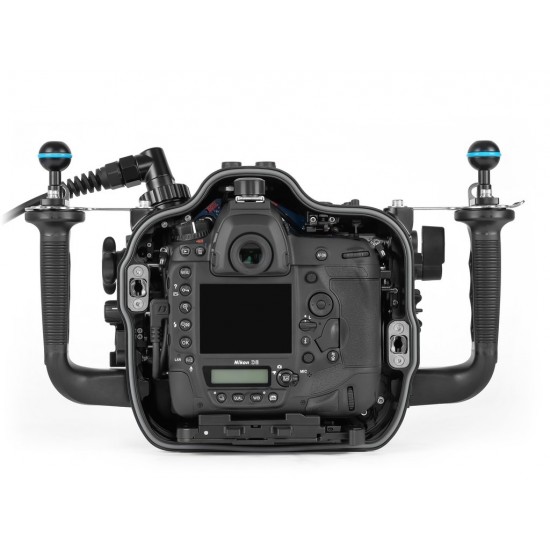

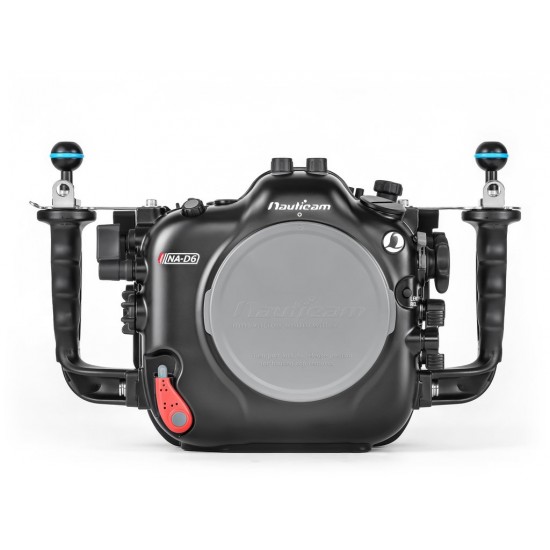

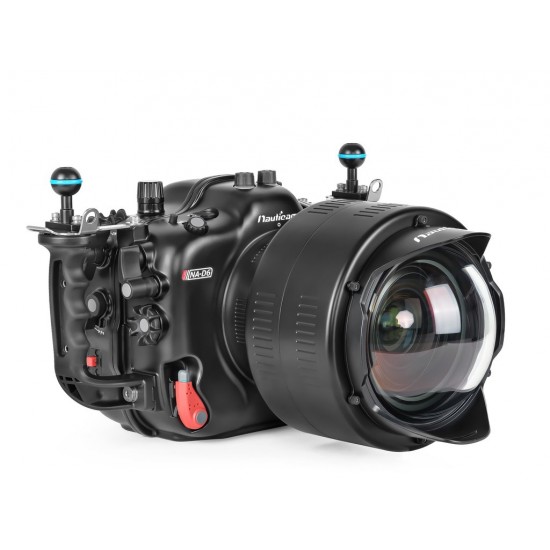

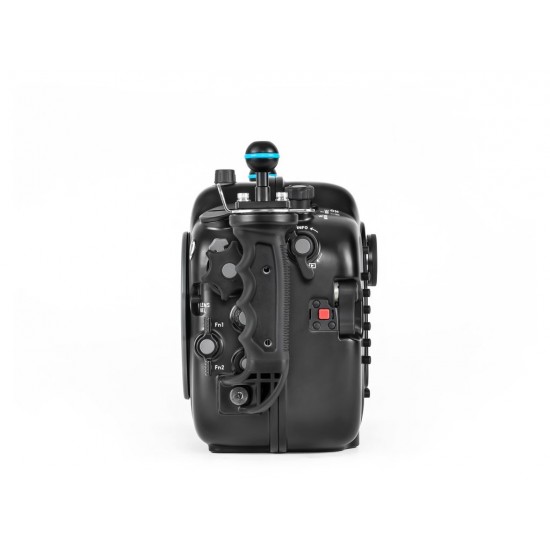

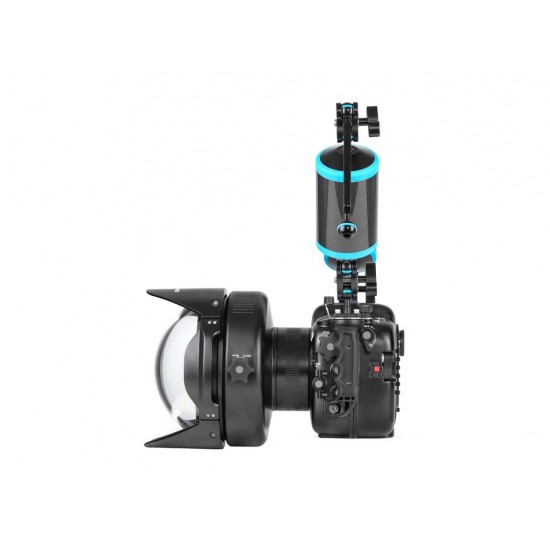

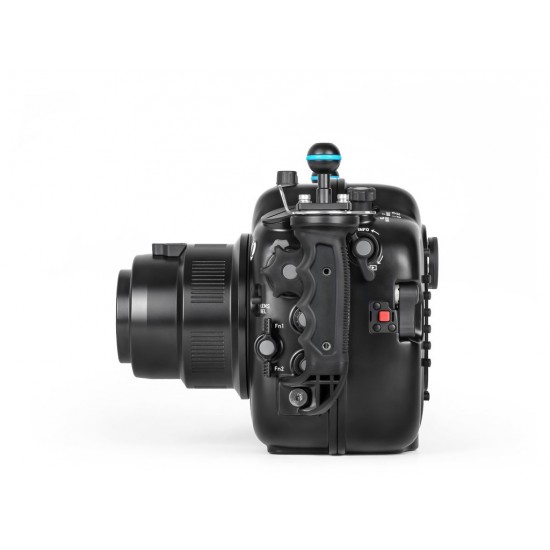

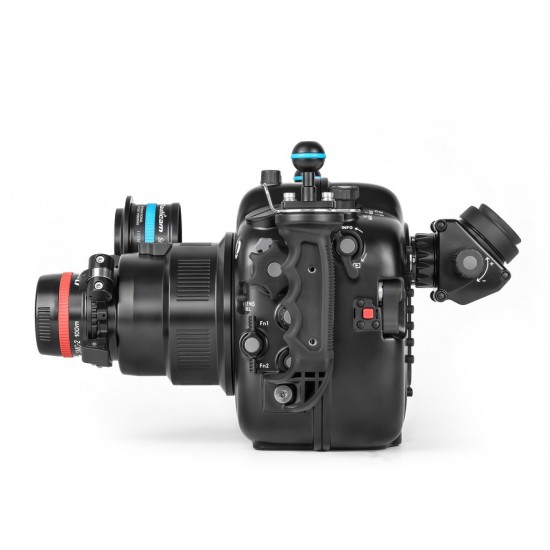

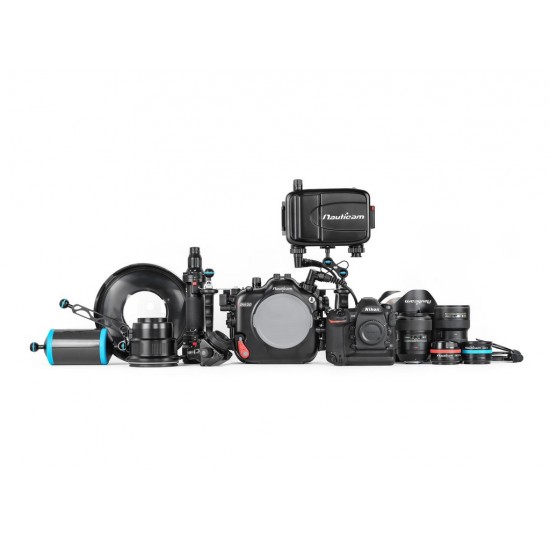

Nauticam NA-D6 防水壳 for Nikon D6
(镜头罩为选购)

[特色]

• 专利镜头罩锁系统
• 防水壳锁定开关闸
• 多功能控制转盘控制
• 整合真空监测漏水系统
• 铝合金握把支架
• 人体工学橡胶握把
• 清晰的控制标示

[包装内含]

• NA-D6 防水壳
• 1x 外闪触发器 for Nikon (无 TTL
• 90134 备用O-ring
• 2x 光纤座盖子
• 2x 握把包含圆球座
• Panasonic CR-2450 电池 (for 湿度警报器)
• 六角板手
• 使用手册卡
• 携行包与肩带

[推荐配件]

• 25625 M16 Vacuum Valve II (Pushbutton Release)
• 32201 Nauticam 180˚ straight viewfinder
• 32203 Nauticam 45˚ viewfinder
• 26308 TTL Converter for Nikon 26216 Universal Optical Fiber Cable
• 28123 Pair of handles - size S (10mm closer to housing)
• 28130 Hand Strap for 28113 (For NA-1DXII/1DXIII/D500/D5/80D/A9)
• 25080 M28-M16 Step Down Adaptor
• 26074 M14 Nikonos 5-pin Bulkhead with Micro Connector for Nikon TTL Converter
• 26075 M14 Ikelite Style Bulkhead with Micro Connector for Nikon TTL Converter

[选购HDMI输出配件]

Required accessories for HDMI 2.0 Cable System

• 25089 M28 HDMI 2.0 Adapter
• 25091 M28C1R215-M28A1R170 HDMI 2.0 Cable (for NA-1DXIII to use with Ninja V housing)

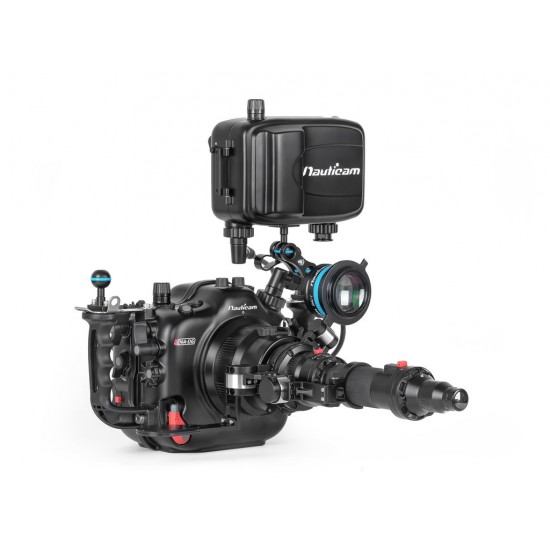

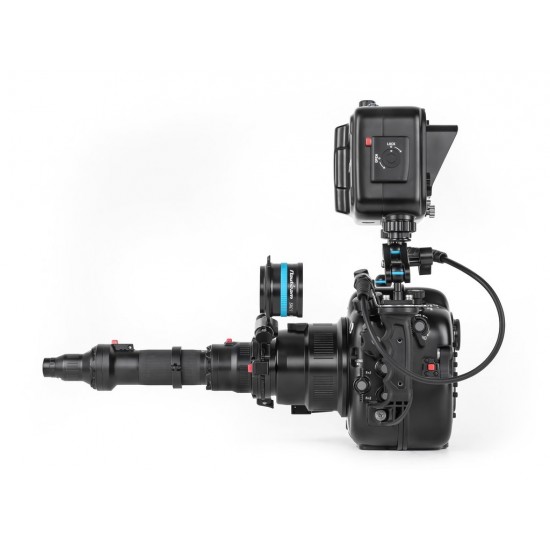

Monitor housing

• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 1 0-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
• 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

Required accessories for HDMI 1.4 Cable System

• 25033 Standard HDMI bulkhead with M16 thread*
• 25080 M28-M16 Step Down Adaptor
• 25036 HDMI (D-C) cable in 190mm length (for connection from HDMI bulkhead to camera)
• *25033,25036 is included in monitor housing

Monitor housings:

• 17920 NA-502B-H Housing for SmallHD 502 Bright Monitor
• 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2" 4K HDMI Monitor with HDMI 1.4 input

Ethernet Output for Remote Control

• 27101 Housing Lemo Bulkhead with Integrated Ethernet Cable in 220mm (includes M28 to M24 adapter)
• 27102 Nauticam Ethernet Surface Cable in 45 meter length

[规格]

• 尺寸: 368mm(W) x 233mm (H) x 147mm(D)
• 重量: 3.8 kg (陆上), 0.05kg(水下, 包含相机与电池)
• 耐水深:  100m
• 镜头罩尺寸: N120

[使用手册]

• Download
