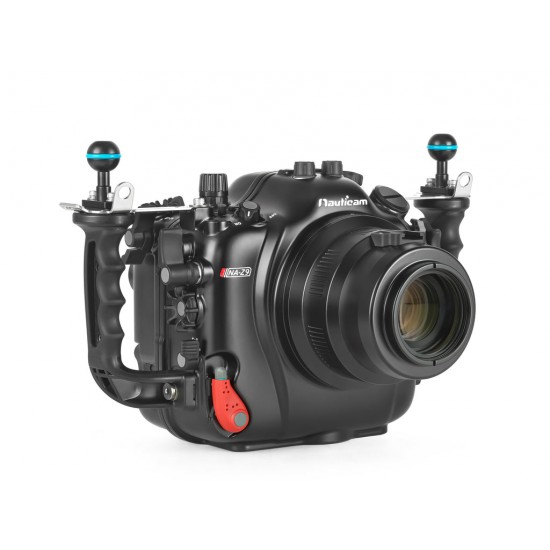

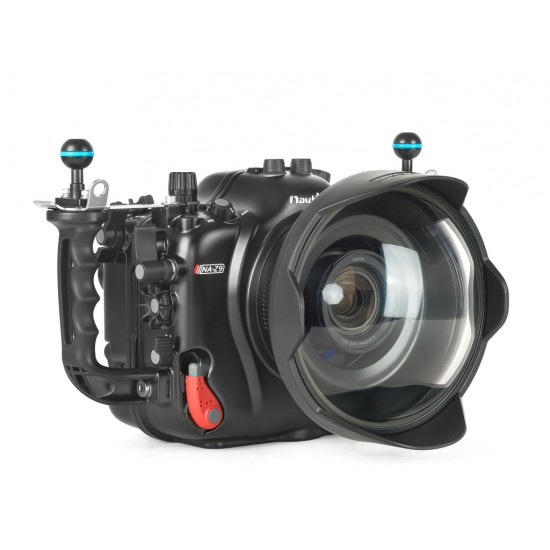

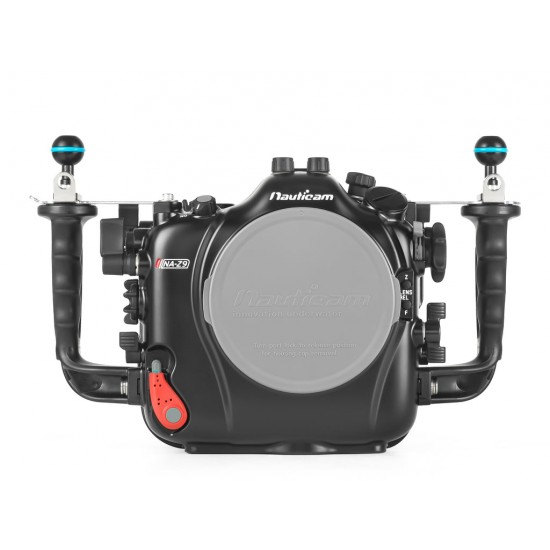

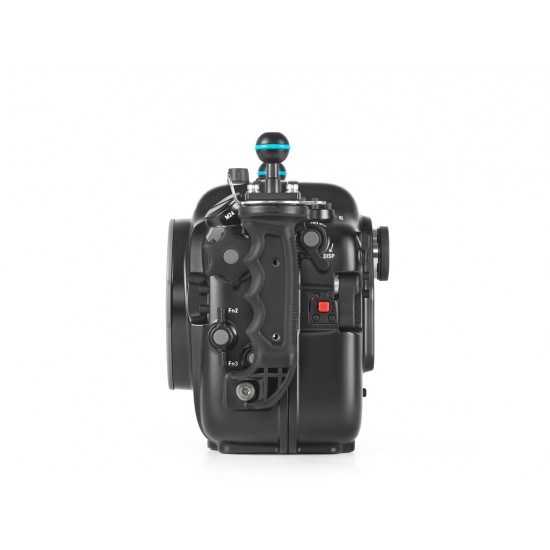

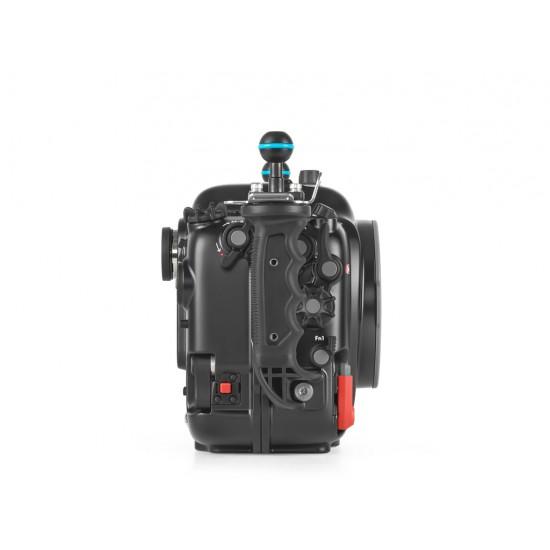

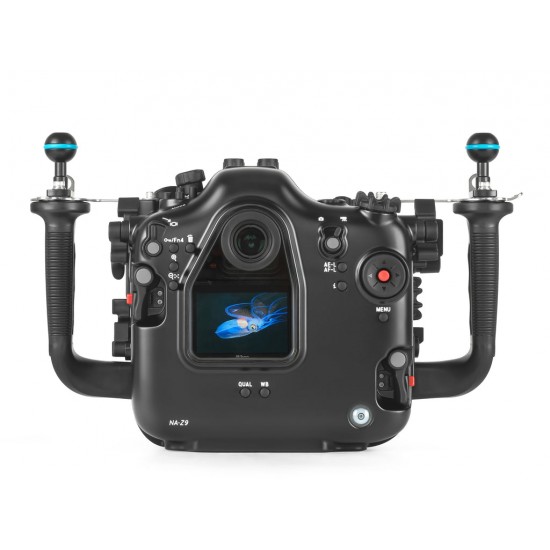

Nauticam NA-Z9 防水壳 for Nikon Z9

[说明]

Nauticam NA-Z9 防水盒 for Nikon Z9 (镜头罩为选购)

[特色]

• HDMI 2.0 支援: 可透过M24配件孔转接支援 HDMI 2.0 与 1.4 的外接银幕

• 相容 F 与 Z 镜头 (透过转接环)
• 整合人体工学控制
• 专利镜头罩锁系统
• 防水盒锁定开关闸
• 多功能控制转盘
• 整合真空监测漏水系统
• 如有任何疑问, 欢迎联络 [email protected]
• 真空系统重置按钮
• 铝合金握把支架
• 人体工学橡胶握把
• 清晰的控制标示

[包装内含]

• Nauticam NA-9 防水盒
• 90222 防水盒 O-ring (已安装)
• 2x 光纤接座盖
• CR2032 电池 (真空系统用)
• 六角板手
• 手册卡
• 防水盒保护袋与肩带

[选购配备]

• 25221 M10 strobe mounting ball for housing
• 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
• 25625 M16 Vacuum Valve II (Pushbutton Release)
• 32201 Nauticam 180˚ straight viewfinder
• 32203 Nauticam 45˚ viewfinder
• 32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1
• 32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
• 32213 Nauticam Full Frame Angle Viewinder 32°/ 1:1
• 32214 Nauticam Full Frame Angle Viewinder 40°/ 0.8:1
• 26308 TTL Converter for Nikon (Compatible with NA-D5/D500/D850/Z7/Z7II, Ikelite DS-161, Sea&Sea YS-250, YS-D1, YS-D2, YS-D3 Inon Z-240 strobes)
• 26216 Universal Optical Fiber Cable
• 25081 M24-M16 Step Down Adaptor
• 26074 M14 Nikonos 5-pin Bulkhead with Micro Connector for Nikon TTL Converter
• 26075 M14 Ikelite Style Bulkhead with Micro Connector for Nikon TTL Converter
• 28123 Pair of handles - size S (10mm closer to housing), 25011 is required.
• 25011 Set of spacers and long screws (for increasing handle distance)
• 28130 Hand Strap for 28113 (For NA-1DXII/1DXIII/D500/D5/80D/A9/R5)
• 17959 Housing Mounting Ball with 1/4'' Screws
• 90222 Housing O-ring (I.D.=220mm, C.S.=4.0mm)

[选购 HDMI 外接银幕]

Required for HDMI 2.0 System

• 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
• 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-a1 to use with Ninja V housing)

Compatible Monitor Housings

• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 1 0-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
• 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

Required for HDMI 1.4 System

• 25033 Standard HDMI bulkhead with M16 thread*
• 25081 M24-M16 Step Down Adaptor
• 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1 (for connection from HDMI bulkhead to camera)

*25033 included in below monitor housings

Compatible Monitor Housings

• 17920 NA-502B-H Housing for SmallHD 502 Bright Monitor

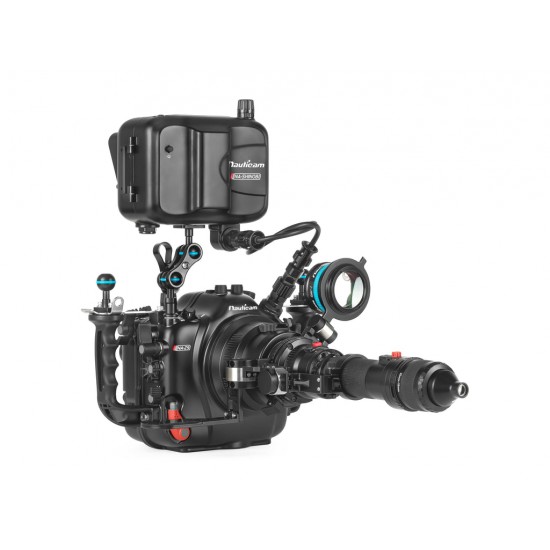

• 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2" 4K HDMI Monitor
• 17925 NA-503-H Housing for SmallHD 503 UltraBright On-Camera Monitor

Compatible Monitor Mounting System

• 17951 Nauticam Atomos Shogun housing mounting system
• 17954 Tripod plate for NA-A7S and NA-GH4
• 17957 Nauticam Atomos Shogun Housing Mounting Adaptor for NA-S1R/S1H/BMPCC/E2F/R3/Z9(SN from A439736)
• 17960 Universal Quadra-Pod Plate for Nauticam Housings

Ethernet System Accessories

Required for Ethernet Surface Control

• 16281 Housing Lemo Bulkhead with Integrated Ethernet Cable
• 16282 Nauticam Ethernet Surface Cable in 45 meter length
• 16283 Nauticam Ethernet Surface Cable in 5 meter length

[规格]

• 尺寸: 361mm(W) x 235mm(H) x 165mm(D)
• 重量: 3.76Kg (陆上)
• 重量: +0.05Kg (包含相机与电池)
• 耐水深: 100m
• 镜头罩规格: N120

[使用手册]

• Download
