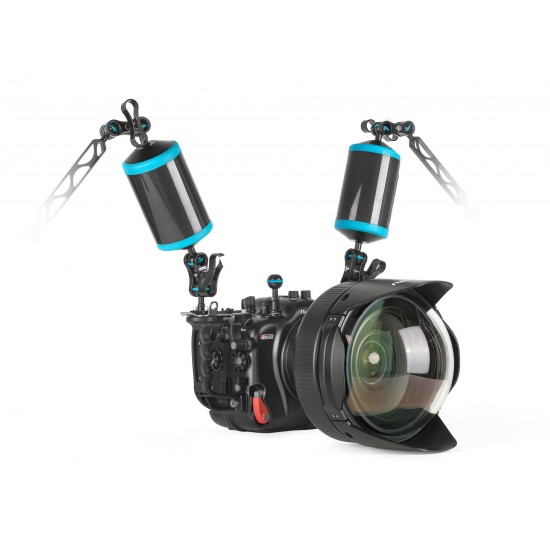

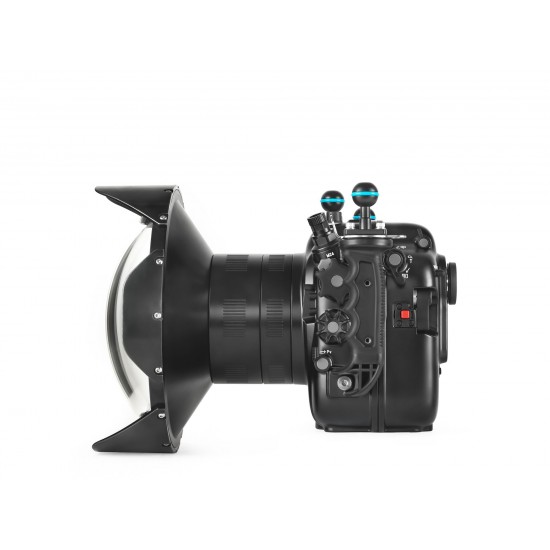

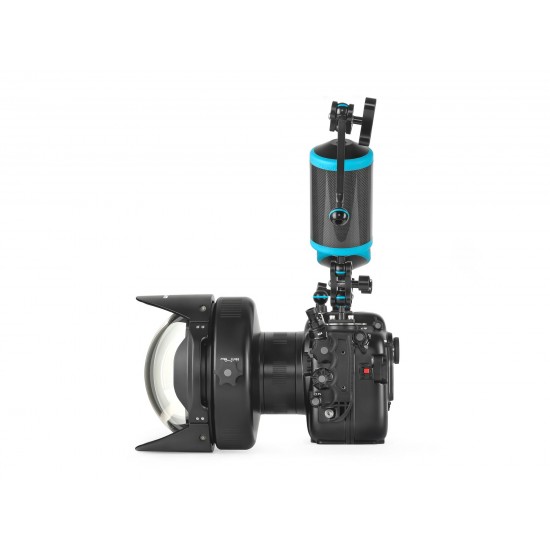

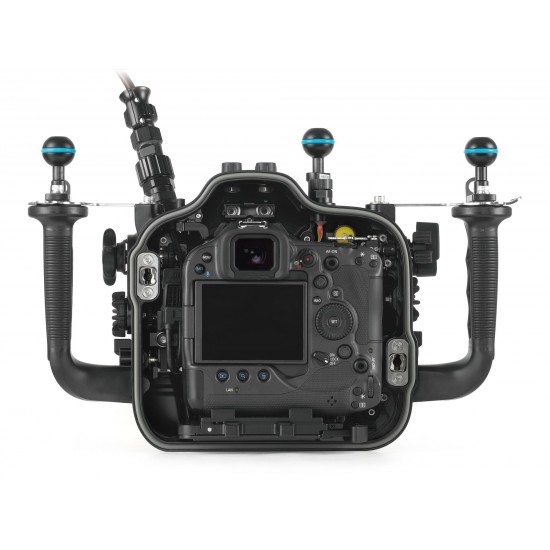

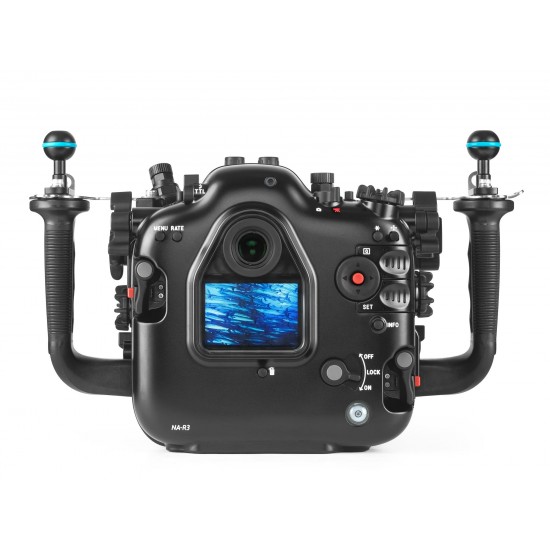

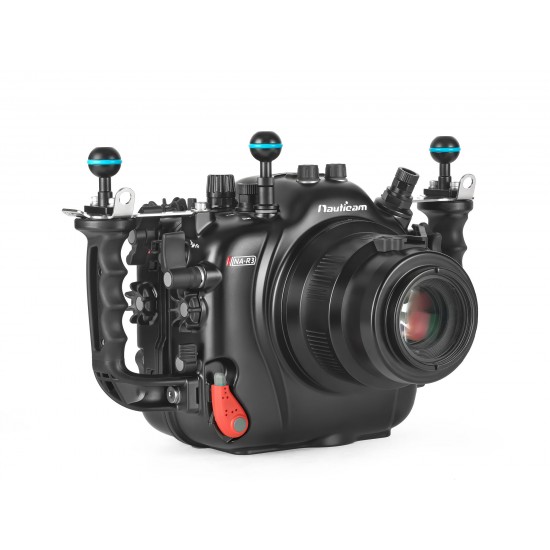

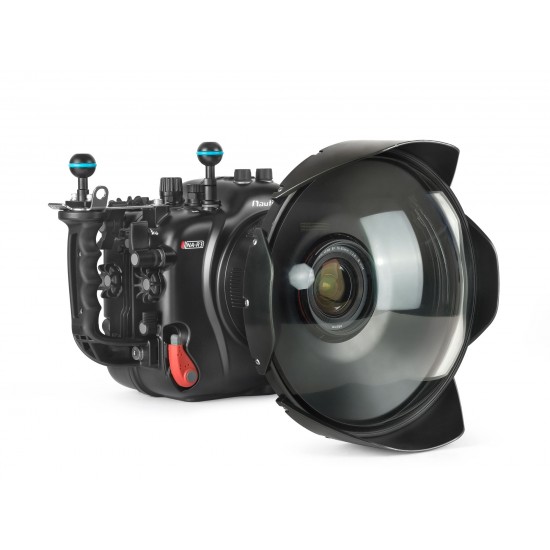

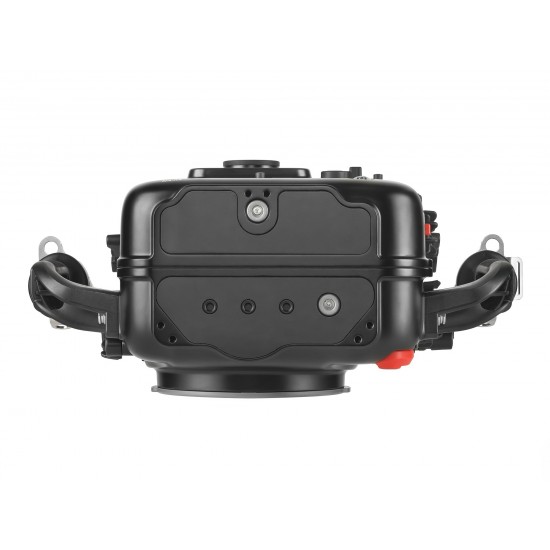

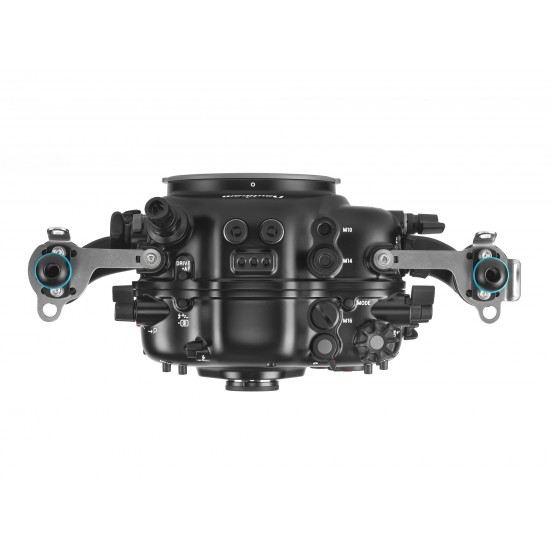

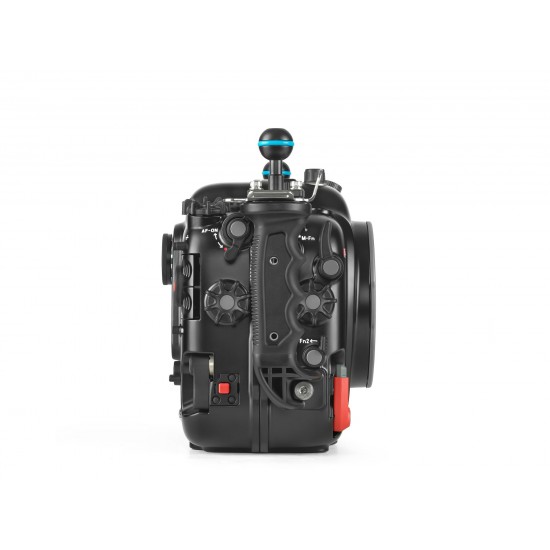

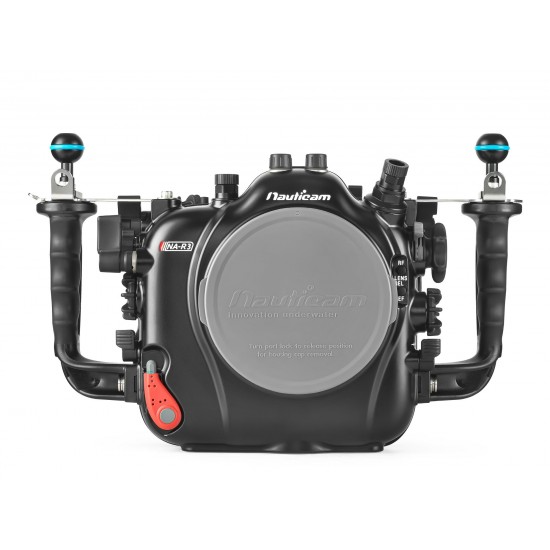

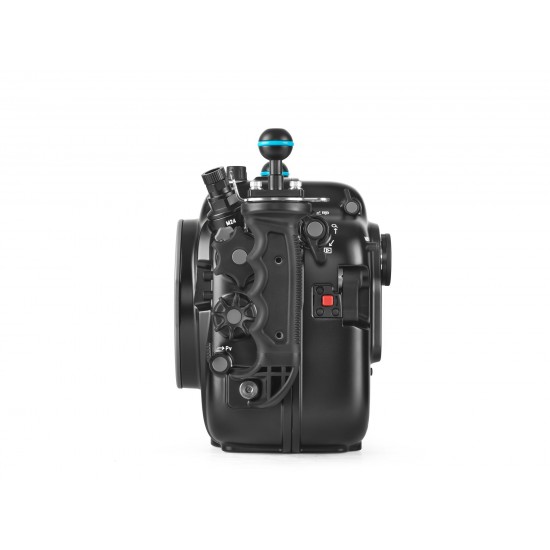

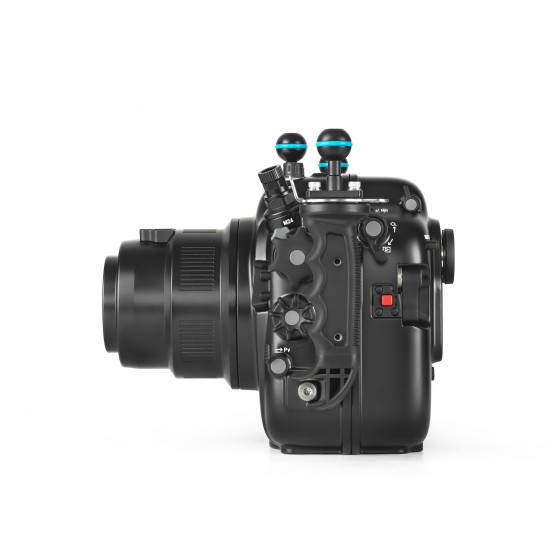

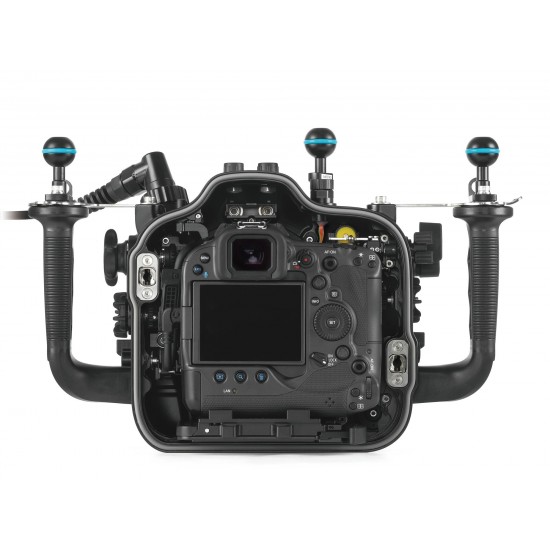

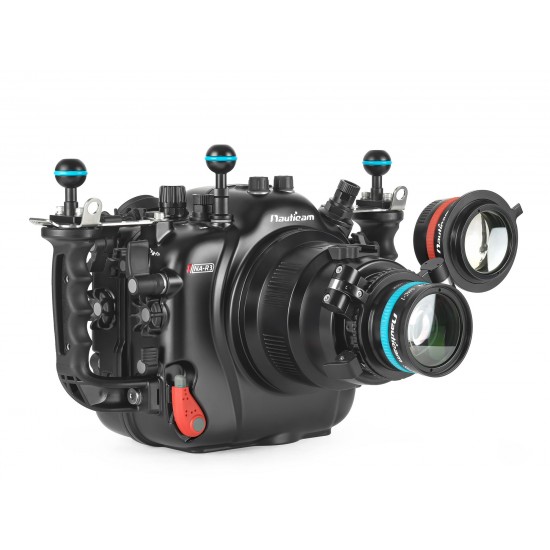

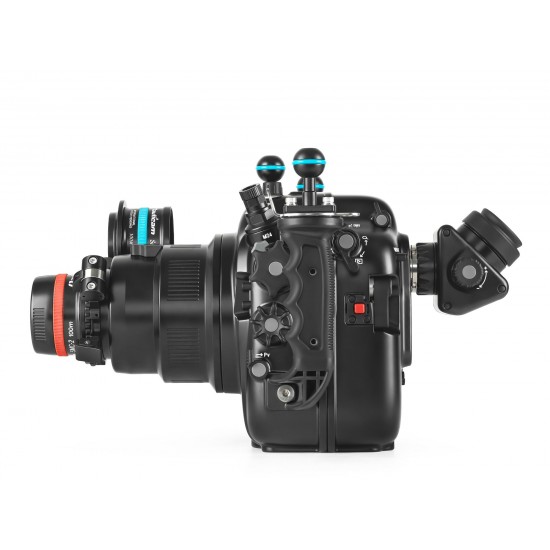

Nauticam NA-R3 防水壳 for Canon EOS R3

[说明]

Nauticam NA-R3 防水壳 for Canon EOS R3, 镜头罩与真空阀为选购

[特色]

• 整合真空测漏系统 (需另外选购M16真空阀#25625)
• 镜头罩锁
• 整合式人体工学控制
• 如有任何疑问, 欢迎联络 [email protected]
• 支援HDMI 2.0 (M24接座)
• 防水壳锁
• 完整配件与镜头罩支援

[包装内含]

• NA-R3 防水壳，左右手柄及球头支架
• 预先安装两个5 pin闪灯接座
• 90222壳体备用O-ring*1, 矽油及拆卸片
• 壳体光纤接头保护盖*2
• Panasonic CR2450电池(用于壳体真空报警器)
• 六角扳手一套
• 使用手册卡
• 壳体旅行收纳包与肩带

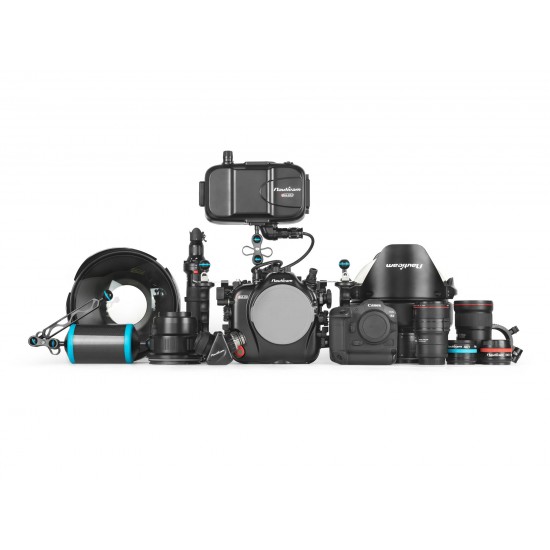

[选购配件]

• 25221 M10 strobe mounting ball for housing
• 25625 M16 Vacuum Valve II (Pushbutton Release)
• 32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1
• 32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
• 32213 Nauticam Full Frame Angle Viewinder 32°/ 1:1
• 32214 Nauticam Full Frame Angle Viewinder 40°/ 0.8:1
• 32201 Nauticam 180˚ straight viewfinder
• 32203 Nauticam 45˚ viewfinder
• 26301 Flash trigger for Canon
• 26321 TTL Flash Trigger for Canon
• 26216 Universal Optical Fiber Cable
• 19561 Gear for Canon EF-EOS R Control Ring Mount Adaptor
• 26320 Control Kit for Canon Drop-In Filter Mount Adapter EF-EOS R, Compatible from SN A482725
• 28130 Hand Strap for 28113 (For NA-1DXII/1DXIII/D500/D5/80D/A9)
• 25017 M14 6 pin bulkhead for Canon system
• 25020 Canon hotshoe plug to a M14 Nikonos bulkhead (x and ground connection only)
• 90222 Housing O-ring (I.D.=220mm, C.S.=4.0mm)

[HDMI输出配件]

Required accessories for HDMI 2.0 Cable System

• 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
• 25077 M24D1R205-M28A1R170 HDMI 2.0 Cable (for NA-XT3 to use with Ninja V housing (SN from A387700)

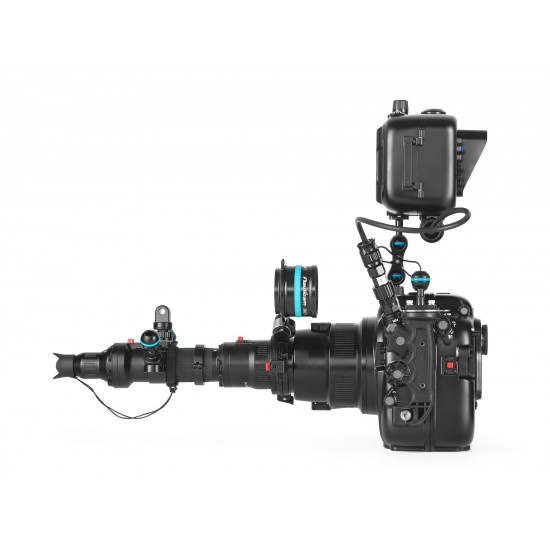

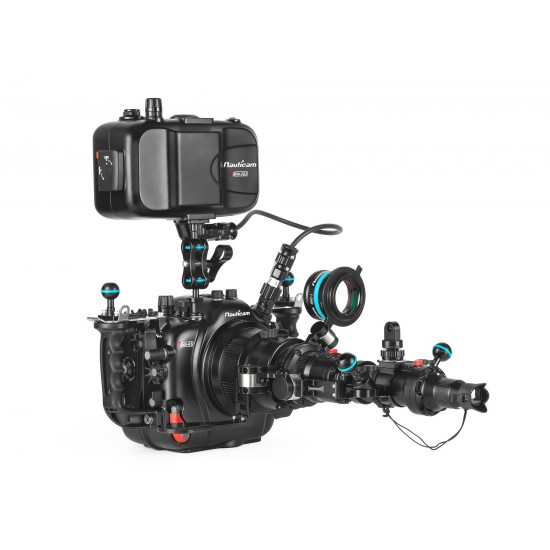

Monitor housings

• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 1 0-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
• 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

Required accessories for HDMI 1.4 Cable System

• 25033 Standard HDMI bulkhead with M16 thread*
• 25081 M24-M16 Step Down Adaptor
• 25076 HDMI (D-D) Cable in 200mm Length for NA-XT2 (for internal connection from HDMI bulkhead to camera)
• *25033 is included in monitor housing

Monitor housings

• 17920 NA-502B-H Housing for SmallHD 502 Bright Monitor
• 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2" 4K HDMI Monitor
• 17925 NA-503-H Housing for SmallHD 503 UltraBright On-Camera Monitor

Required Accessories for Surface control by Ethernet

• 16281 Housing Lemo Bulkhead with Integrated Ethernet Cable
• 16282 Nauticam Ethernet Surface Cable in 45 meter length
• 16283 Nauticam Ethernet Surface Cable in 5 meter length

Required Monitor Mounting system

• 17951 Nauticam Atomos Shogun housing mounting system
• 17954 Tripod plate for NA-A7S and NA-GH4
• 17957 Nauticam Atomos Shogun Housing Mounting Adaptor for NA-S1R/S1H/BMPCC/E2F
• 17960 Universal Quadra-Pod Plate for Nauticam Housings

[规格]

• 耐水深:  100m
• 尺寸:  363mm x 236mm x 161mm (W x H x D)
• 重量: 3.6kg
• 水下浮力: +0.6kg, 包含相机与电池)
• 镜头罩规格: N120

[说明书]

• Download

[影片]

• 新品 | Nauticam NA-R3相机防水壳
