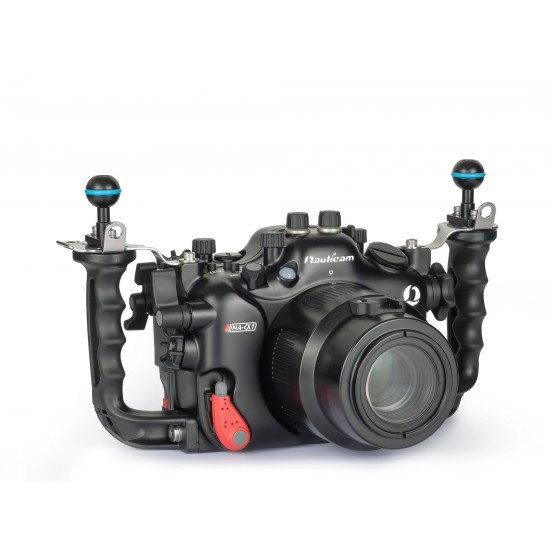

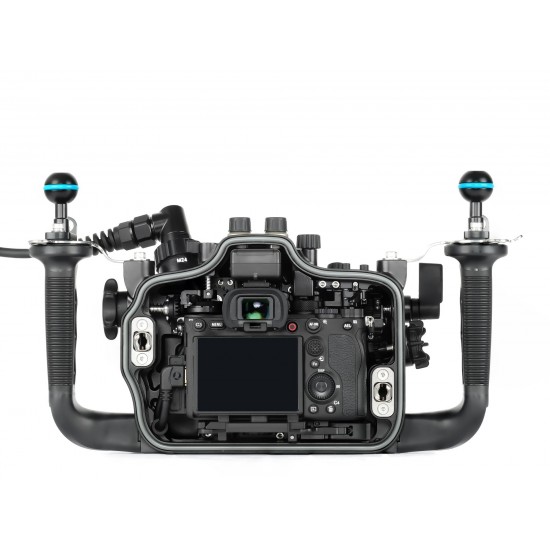

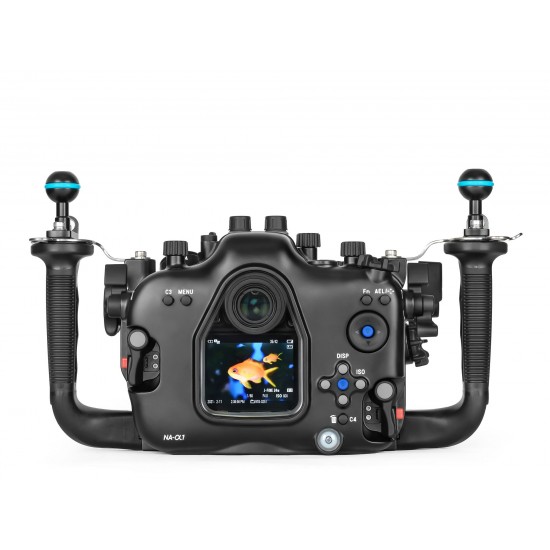

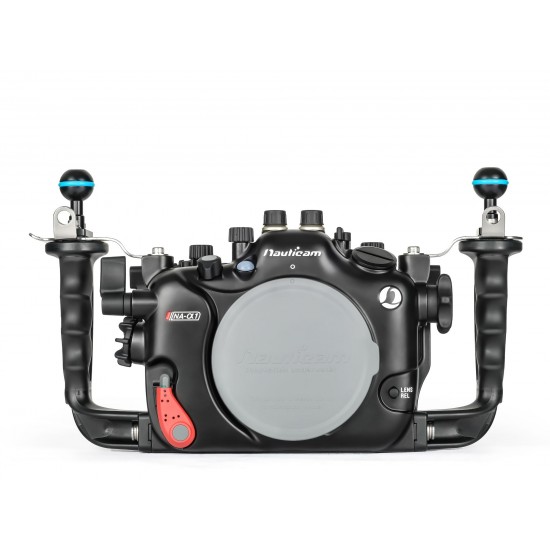

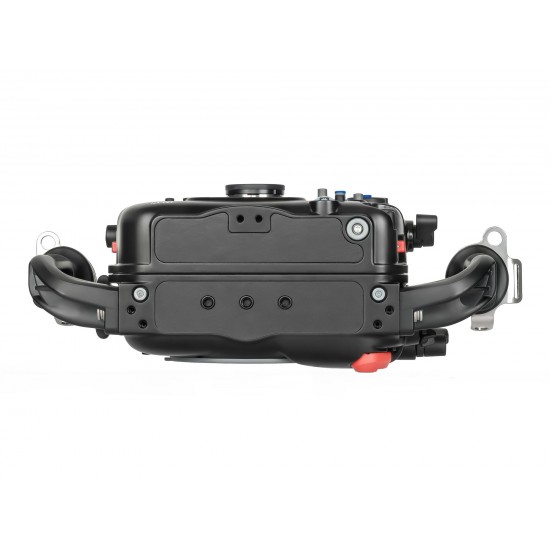

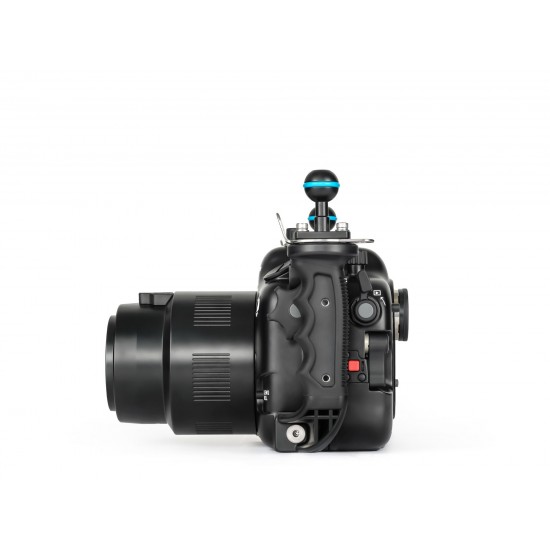

Nauticam NA-α1 防水壳 for Sony α1

[说明]

Nauticam NA-α1 防水壳 for Sony α1，不含镜头罩

• 专利镜头罩锁定系统
• 整合真空测漏系统电路 (选购真空测漏阀:Nauticam M14 Vacuum Valve II (25624))
• 如有任何疑问, 欢迎联络 [email protected]
• 真空测漏系统重置按钮
• 简易操作防水壳锁

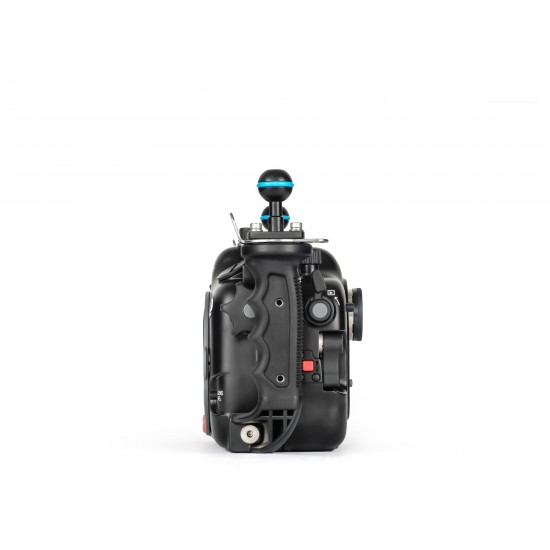

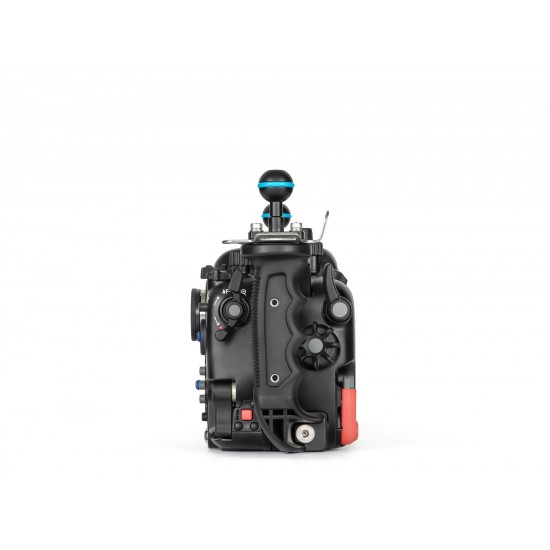

• 人体工学橡胶外皮可调式握把
• 多种配件可选购
• 选购三脚架球座 (Tripod Mounting Ball Set (25218))

[包装内含]

• NA-α1 防水壳
• 90120 备用O-ring
• 2x 盖子 for 光纤闪灯座
• 2x 握把圆球座
• Panasonic CR-2032 电池 (漏水警报器与真空侦测器用)
• 六角板手
• 防水壳背包与肩带

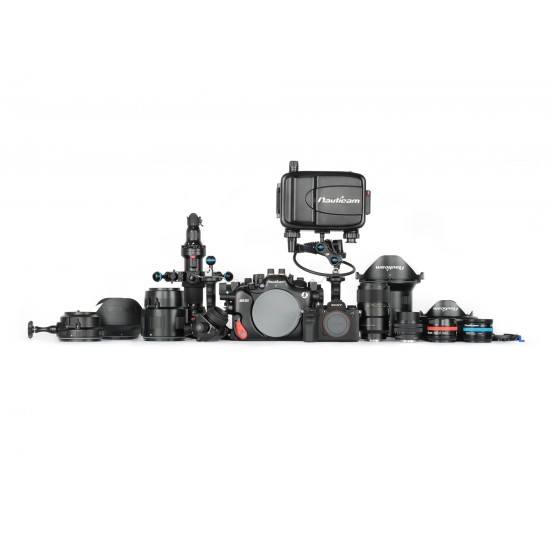

[选购配件]

• 17430UK Conversion Kit to Convert NA-α1 for use with Sony A7SIII Camera
• 25624 M14 Vacuum Valve II (Pushbutton Release)
• 32201 Nauticam 180˚ straight viewfinder

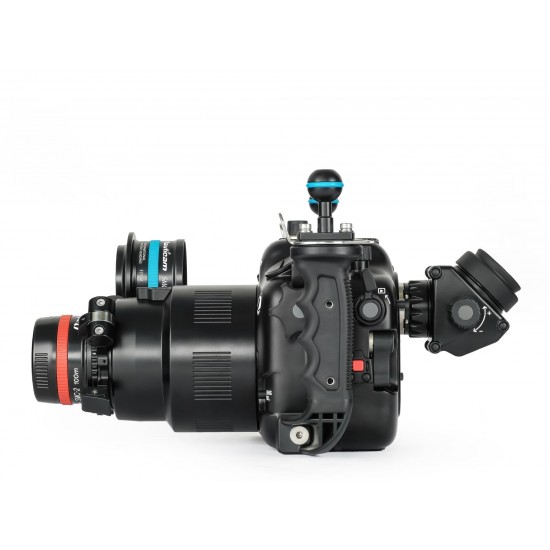

• 32203 Nauticam 45˚ viewfinder
• 26302 Mini Flash Trigger for Sony (compatible with NA-A7/A7II/A9) – compatible with YS-D2
• 26216 Universal Optical Fiber Cable
• 28130 Hand Strap for 28113 (For NA-1DXII/D500/D5/80D/A9)
• 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
• 37202 Nikonos adaptor for NA-A7II/A9/A7RIII/A7RIV/a2020/a1
• 25081 M24-M16 Step Down Adaptor
• 25056 M14 Nikonos 5-pin bulkhead with universal hotshoe connection

[选购 HDMI 外接银幕]

For HDMI 2.0

• 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
• 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-α1 to use with Ninja V housing)

Monitor housing:

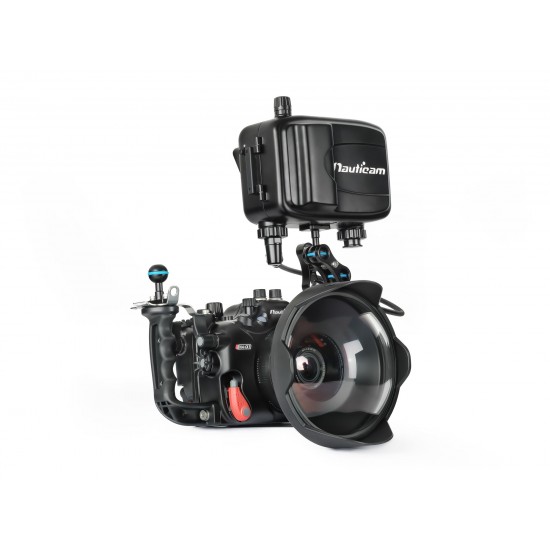

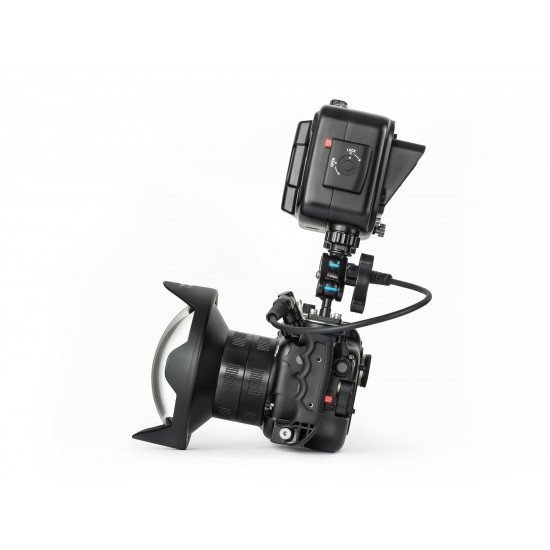

• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
• 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

For HDMI 1.4

• 25081 M24-M16 Step Down Adaptor
• 25100 HDMI (D-A) cable in 190mm length for NA-a1 (for connection from HDMI bulkhead to camera)
• 25033 standard HDMI bulkhead with M16 thread

Monitor housing:

• 17920 NA-502B-H Housing for SmallHD 502 Bright Monitor
• 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2" 4K HDMI Monitor with HDMI 1.4 input

[规格]

• 耐水深: 100m
• 重量(陆上): 2.7 kg
• 重量(水下): 0.6 kg (包含相机与电池)
• 尺寸: 340mm (W) × 169mm (H) × 125mm (D)
• 镜头罩尺寸: N100

[使用手册]

• Download
